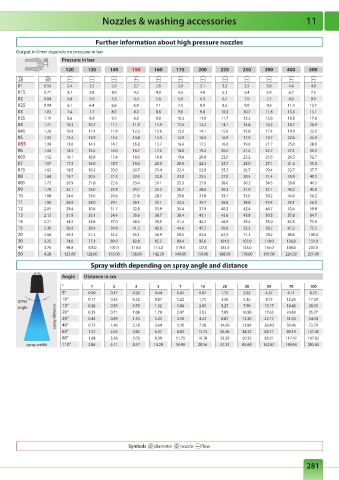

Nozzles & washing accessories 11

Further information about high pressure nozzles
Output in l/min depends on pressure in bar
Pressure in bar
120 130 140 150 160 175 200 225 250 300 400 500

01 0.59 2.4 2.5 2.6 2.7 2.8 2.9 3.1 3.3 3.5 3.8 4.4 4.9
015 0.71 3.7 3.8 4.0 4.2 4.3 4.5 4.8 5.1 5.4 5.9 6.7 7.5
02 0.84 4.8 5.0 5.3 5.4 5.6 5.9 6.3 6.7 7.0 7.7 8.9 9.9
025 0.94 6.1 6.4 6.6 6.9 7.1 7.5 8.0 8.5 9.0 9.9 11.4 12.7
03 1.03 7.4 7.7 8.0 8.3 8.6 9.0 9.6 10.2 10.7 11.8 13.5 15.1
035 1.10 8.6 8.9 9.2 9.5 9.8 10.3 11.0 11.7 12.3 13.8 15.5 17.8
04 1.21 10.3 10.7 11.1 11.5 11.9 12.4 13.3 14.1 14.8 16.3 18.7 20.9
045 1.26 10.9 11.4 11.8 12.2 12.6 13.2 14.1 15.0 15.8 17.4 19.9 22.3
05 1.33 12.4 12.9 13.4 13.8 14.3 14.9 16.0 16.9 17.9 19.7 22.6 25.3
055 1.39 13.6 14.1 14.7 15.2 15.7 16.4 17.5 18.6 19.6 21.7 25.0 28.0
06 1.46 14.9 15.5 16.0 16.7 17.2 18.0 19.2 20.4 21.5 23.7 27.1 30.3
065 1.52 16.1 16.8 17.4 18.0 18.6 19.4 20.8 22.0 23.2 25.6 29.3 32.7
07 1.57 17.3 18.0 18.7 19.3 20.0 20.9 22.3 23.7 25.0 27.1 31.3 35.0
075 1.63 18.5 19.3 20.0 20.7 21.4 22.4 23.9 25.3 26.7 29.4 33.7 37.7
08 1.68 19.7 20.5 21.3 22.0 22.8 23.8 25.5 27.0 28.5 31.4 35.9 40.2
085 1.73 20.9 21.8 22.6 23.4 24.1 25.3 27.0 28.6 30.2 34.5 39.8 44.5
09 1.78 22.1 23.0 23.9 24.7 25.5 26.7 28.6 30.3 31.9 35.1 40.2 45.0
10 1.88 24.6 25.6 26.6 27.6 28.5 29.8 31.8 33.7 35.6 39.2 44.9 50.2
11 1.96 26.9 28.0 29.1 30.1 31.1 32.5 34.7 36.8 38.8 43.4 50.1 56.0
12 2.05 29.4 30.6 31.7 32.8 33.9 35.4 37.9 40.2 42.4 46.7 53.4 59.8
13 2.13 31.8 33.1 34.4 35.6 36.7 38.4 41.1 43.6 45.9 50.5 57.8 64.7
14 2.21 34.2 35.6 37.0 38.3 39.5 41.4 44.3 46.9 49.4 55.0 63.5 71.0
15 2.30 36.9 38.4 39.9 41.3 42.6 44.6 47.7 50.6 53.3 58.7 67.2 75.2
20 2.66 49.3 51.3 53.2 55.1 56.9 59.5 63.6 67.5 71.1 78.2 89.6 100.0
30 3.25 74.0 77.1 80.0 82.8 85.5 89.4 95.6 101.0 107.0 118.0 136.0 151.0
40 3.76 98.8 103.0 107.0 110.0 114.0 119.0 127.0 135.0 143.0 156.0 180.0 202.0
50 4.28 123.00 128.00 133.00 138.00 142.50 149.00 159.00 168.50 178.00 195.00 224.50 251.00

Spray width depending on spray angle and distance
Angle Distance in cm
° 1 2 3 5 7 10 20 30 50 70 100
5° 0.09 0.17 0.26 0.44 0.61 0.87 1.75 2.62 4.37 6.11 8.73
10° 0.17 0.35 0.52 0.87 1.22 1.75 3.50 5.25 8.75 12.25 17.50
spray
spray distance 20° 0.35 0.71 1.06 1.76 2.47 3.53 7.05 10.58 17.63 24.69 35.27
angle 15° 0.26 0.53 0.79 1.32 1.84 2.63 5.27 7.90 13.17 18.43 26.33
25°
22.17
1.33
2.22
4.43
8.87
3.10
13.30
31.04
44.34
0.44
0.89
40°
72.79
7.28
65° 0.73 1.46 2.18 3.64 5.10 12.74 14.56 21.84 36.40 50.96 127.41
63.71
89.19
38.22
3.82
2.55
1.27
8.92
25.48
6.37
80° 1.68 3.36 5.03 8.39 11.75 16.78 33.56 50.35 83.91 117.47 167.82
spray width 110° 2.86 5.71 8.57 14.28 19.99 28.56 57.13 85.69 142.81 199.94 285.63
Symbols diameter nozzle flow

281
