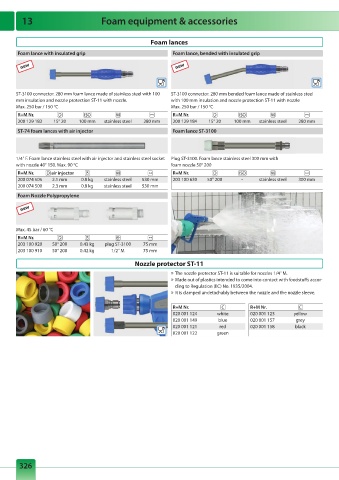

Page 327 - RM_2022

13 Foam equipment & accessories

Foam lances
Foam lance with insulated grip Foam lance, bended with insulated grip

new new

ST-3100 connector. 280 mm foam lance made of stainless steel with 100 ST-3100 connector. 280 mm bended foam lance made of stainless steel
mm insulation and nozzle protection ST-11 with nozzle. with 100 mm insulation and nozzle protection ST-11 with nozzle
Max. 250 bar / 150 °C Max. 250 bar / 150 °C
R+M Nr. R+M Nr.
200 129 183 15° 20 100 mm stainless steel 280 mm 200 129 184 15° 20 100 mm stainless steel 280 mm
ST-74 foam lances with air injector Foam lance ST-3100

1/4" F. Foam lance stainless steel with air injector and stainless steel socket Plug ST-3100. Foam lance stainless steel 300 mm with
with nozzle 40° 150. Max. 90 °C foam nozzle 50° 200
R+M Nr. air injector R+M Nr.
200 074 505 2.1 mm 0.8 kg stainless steel 530 mm 203 100 630 50° 200 - stainless steel 300 mm
200 074 500 2.3 mm 0.8 kg stainless steel 530 mm
Foam Nozzle Polypropylene

new

Max. 45 bar / 60 °C
R+M Nr.
203 100 920 50° 200 0.43 kg plug ST-3100 75 mm
203 100 910 50° 200 0.42 kg 1/2" M 75 mm

Nozzle protector ST-11

» The nozzle protector ST-11 is suitable for nozzles 1/4" M.
» Made out of plastics intended to come into contact with foodstuffs accor-
ding to Regulation (EC) No. 1935/2004.
» It is clamped undetachably between the nozzle and the nozzle sleeve.

R+M Nr. R+M Nr.
020 001 124 white 020 001 123 yellow
020 001 149 blue 020 001 157 grey
020 001 121 red 020 001 158 black
020 001 122 green

326
