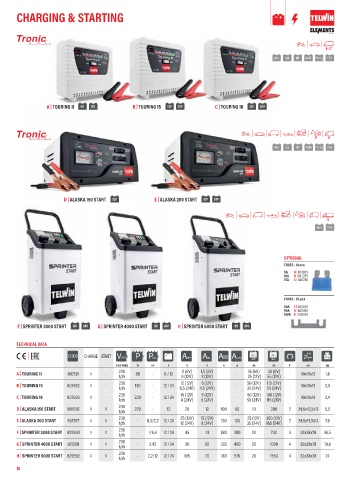

CHARGING & STARTING

Tronic

B | C
Wet Gel MF AGM Pb-Ca EFB

A | TOURING 11 6V 12V B | TOURING 15 12V 24V C | TOURING 18 12V 24V

Tronic
E E
Wet Gel MF AGM Pb-Ca EFB

D | ALASKA 150 START 12V E | ALASKA 200 START 12V 24V

H
Wet EFB

OPTIONAL
FUSES - 10 pcs
5A A | 802859
10A B | 802255
15A C | 802256

FUSES - 20 pcs
50A F | 802259
80A G | 802260
100A H | 802029
F | SPRINTER 3000 START 12V 24V G | SPRINTER 4000 START 12V 24V H | SPRINTER 6000 START 12V 24V

TECHNICAL DATA

CODE CHARGE START V1PH P PC/S AEFF AEN AMAX A1V/C Ah Ah W H
START
MIN MAX L
V (50-60Hz) W kW V A A A A Ah Ah N° cm kg
230 2 (6V) 1,5 (6V) 15 (6V) 30 (6V)
A | TOURING 11 807591 X - 60 - 6 / 12 - - - 10x19x19 1,8
1ph 6 (12V) 3 (12V) 25 (12V) 55 (12V)
230 12 (12V) 6 (12V) 50 (12V) 115 (12V)
B | TOURING 15 807592 X - 130 - 12 / 24 - - - 10x19x19 2,9
1ph 6,5 (24V) 4,5 (24V) 30 (24V) 55 (24V)
230 15 (12V) 9 (12V) 60 (12V) 180 (12V)
C | TOURING 18 807593 X - 230 - 12 / 24 - - - 10x19x19 3,4
1ph 8 (24V) 6 (24V) 50 (24V) 115 (24V)
230
D | ALASKA 150 START 807576 X X 220 - 12 20 12 100 50 10 200 2 24,5x19,5x13 5,9
1ph
230 25 (12V) 15 (12V) 25 (12V) 300 (12V)
E | ALASKA 200 START 807577 X X - 0,3/2,2 12 / 24 150 100 2 24,5x19,5x13 7,6
1ph 12 (24V) 8 (24V) 30 (24V) 160 (24V)
230
F | SPRINTER 3000 START 829390 X X - 1/6,4 12 / 24 45 31 180 300 20 700 3 32x38x78 16,5
1ph
230
G | SPRINTER 4000 START 829391 X X - 2/12 12 / 24 90 60 300 400 20 1000 4 32x38x78 19,8
1ph
230
H | SPRINTER 6000 START 829392 X X - 2,2/12 12 / 24 105 70 360 570 20 1550 4 32x38x78 24
1ph
10 10
