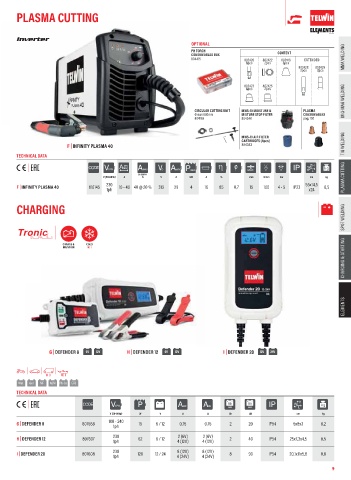

Page 9 - Telwin_2023

PLASMA CUTTINGING
PL A S M A CU T T

OPTIONAL
PH TORCH CONTENT
CONSUMABLES BOX
804415 802420 802422 802418 EXTENDED MMA WELDING
6pcs 2pcs 3pcs
802428 802429
2pcs 2pcs

MIG-MAG WELDING
802423 802425
6pcs 2pcs

CIRCULAR CUTTING UNIT MMS-10 MOISTURE & PLASMA
Ø max 680mm MIXTURE STOP FILTER CONSUMABLES
804169 804340 pag. 100

MMS-10 AIR FILTER
CARTRIDGES (4pcs)
F | INFINITY PLASMA 40 804343 TIG WELDING
TECHNICAL DATA

MIN
CODE V1PH A MAX AMAX VO AMAX PMAX MAX IP W L H
EN 60974-1
V (50-60Hz) A A V A kW A % mm l/min bar cm kg PLASMA CUTTING
230 55x14,5
F | INFINITY PLASMA 40 816145 10 - 40 40 @ 20 % 313 29 4 16 85 0,7 15 100 4 - 5 IP23 6,5
1ph x24
CHARGING SPOT WELDING

Tronic
CHARGING & STARTING
CHARGE & COLD
MAINTAIN H | I

ELEMENTS INDEX

G | DEFENDER 8 6V 12V H | DEFENDER 12 6V 12V I | DEFENDER 20 12V 24V

H | I H | I
Wet Gel MF AGM Pb-Ca EFB
TECHNICAL DATA

CODE V1PH P AEFF AEN Ah Ah IP W L H
MIN
MAX
V (50-60Hz) W V A A Ah Ah cm kg
100 - 240
G | DEFENDER 8 807558 15 6 / 12 0,75 0,75 2 20 IP54 5x8x3 0,2
1ph
230 2 (6V) 2 (6V)
H | DEFENDER 12 807607 62 6 / 12 2 40 IP54 25x7,3x4,5 0,5
1ph 4 (12V) 4 (12V)
230 8 (12V) 8 (12V)
I | DEFENDER 20 807608 120 12 / 24 8 90 IP54 20,1x11x5,8 0,8
1ph 4 (24V) 4 (24V)
9
