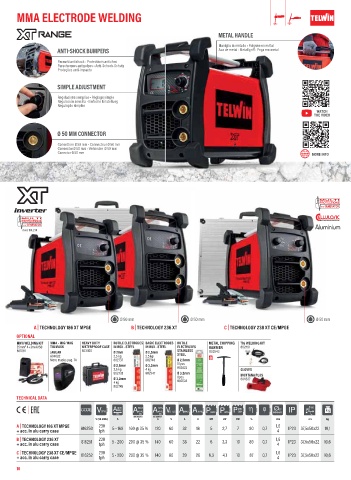

Page 16 - Telwin_2023

MMA ELECTRODE WELDING

METAL HANDLE
Maniglia in metallo • Poignée en métal
ANTI-SHOCK BUMPERS Asa de metal • Metallgriff • Pega em metal
Paraurti antishock • Protections antichoc
Parachoques antigolpes • Anti-Schock-Schutz
Proteções anti-impacto

SIMPLE ADJUSTMENT
Regolazione semplice • Réglage simple
Regulación sencilla • Einfache Einstellung
Regulação simples

Ø 50 MM CONNECTOR
Connettore Ø 50 mm • Connecteur Ø 50 mm
Connector Ø 50 mm • Verbinder Ø 50 mm
Conector Ø 50 mm

mod. 186, 238

Ø 50 mm Ø 50 mm Ø 50 mm
A | TECHNOLOGY 186 XT MPGE B | TECHNOLOGY 236 XT C | TECHNOLOGY 238 XT CE/MPGE
OPTIONAL
MMA WELDING KIT MMA - MIG/MAG HEAVY DUTY RUTILE ELECTRODES BASIC ELECTRODES RUTILE METAL CHIPPING TIG WELDING KIT
25mm 4+3m AX50 TIG MASK WATERPROOF CASE IN BOX - STEEL IN BOX - STEEL ELECTRODES HAMMER 802491
02491
2
801081 JAGUAR 803400 Ø 2mm Ø 2,5mm STAINLESS 802543
804082 2,5 kg 2,5 kg STEEL
More masks pag. 74 802737 802748 Ø 2,5mm
10pcs
Ø 2,5mm Ø 3,2mm
2,5 kg 4 kg 802623 GLOVES
802739 802947 Ø 3,2mm MONTANA PLUS
Ø 3,2mm 8pcs 804337
4 kg 802624
802749
TECHNICAL DATA
MAX
60%
CODE V 1PH A MIN A40°C A40°C VODC AMAX A 60% PMAX P60% PGEN MIN/MAX IP W H
MIN
ØDC
MAX
DC DC DC L
EN 60974-1 EN 60974-1
V (50-60Hz) A A A V A A kW kW kW % mm cm kg
A | TECHNOLOGY 186 XT MPGE 816250 230 5 - 160 160 @ 35 % 120 60 32 18 5 2,7 7 90 0,7 1,6 IP23 37,5x50x22 10,1
+ acc. in alu carry case 1ph 4
B | TECHNOLOGY 236 XT 816251 230 5 - 200 200 @ 35 % 140 60 38 22 6 3,3 10 89 0,7 1,6 IP23 37,5x50x22 10,6
+ acc. in alu carry case 1ph 4
C | TECHNOLOGY 238 XT CE/MPGE 816252 230 5 - 200 200 @ 35 % 140 80 39 26 6,3 4,1 10 87 0,7 1,6 IP23 37,5x50x22 10,6
+ acc. in alu carry case 1ph 4
