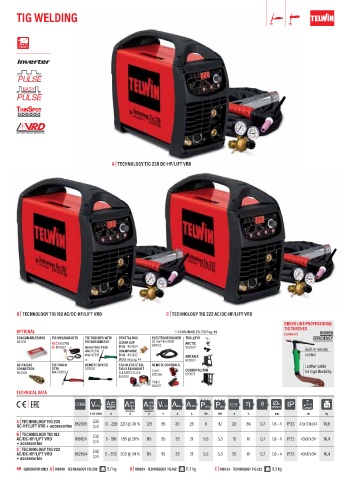

Page 40 - Telwin_2023

G
TIG WELDING

REMOTE
CONTROL

PULSE
EASY
PULSE

A | TECHNOLOGY TIG 230 DC-HF/LIFT VRD

B | TECHNOLOGY TIG 182 AC/DC-HF/LIFT VRD C | TECHNOLOGY TIG 222 AC/DC-HF/LIFT VRD
GREEN LINE PROFESSIONAL
TIG TORCHES
OPTIONAL → CONSUMABLES: TIG Pag. 99 HIGHER
(optional)
CONSUMABLES BOX TIG WELDING KITS TIG TORCHES WITH CRYSTAL BOX ELECTRODE HOLDER TROLLEYS EFFICIENCY
2
804138 A | C | 802788 POTENTIOMETER CLEAR CUP 25 mm 4m AX50 ARCTIC
362
B | 804362 Green line ST26 Ø 1,6 - 804204 4 804123 803059
4m 742618 CHAMPAGNE E Built-in remote
8m 742619 Ø 1,6 - 804202 2 AMERICA control
+ MORE on pag. 44 803084
QUICK GAS TIG TORCH REMOTE DEVICE STAINLESS STEEL REMOTE CONTROLS Leather cable
CONNECTOR ST26 802810 TIG CLEANING KIT 2 pot. COSMOPOLITAN
804208 8m 742616 CLEANTECH 200 802336 803079 for high flexibility
850020
Pedal
802017
TECHNICAL DATA
MAX
CODE V1PH A MIN A40°C 60% MIN/MAX IP
ØDC
MAX
DC
DC DC A40°C VODC AMAX A 60% PMAX P60% LxWxH
EN 60974-1 EN 60974-1
V (50-60Hz) A A A V A A kW kW A % mm cm kg
A | TECHNOLOGY TIG 230 852055 230 10 - 220 220 @ 30 % 125 95 36 26 6 4,1 20 86 0,7 1,6 - 4 IP23 43x17,6x34 14,8
DC-HF/LIFT VRD + accessories 1ph
B | TECHNOLOGY TIG 182 230
AC/DC-HF/LIFT VRD 816824 5 - 180 180 @ 20% 115 95 33 21 5,5 3,3 16 81 0,7 1,6 - 4 IP23 43x17x34 16,4
+ accessories 1ph
C | TECHNOLOGY TIG 222 230
AC/DC-HF/LIFT VRD 852054 5 - 200 200 @ 24 % 115 95 33 21 5,5 3,3 20 81 0,7 1,6 - 4 IP23 43x17x34 16,4
+ accessories 1ph
40 GENERATOR ONLY A | 816040 - TECHNOLOGY TIG 230 9,7 kg B | 816024 - TECHNOLOGY TIG 182 11,3 kg C | 816033 - TECHNOLOGY TIG 222 11,3 kg
