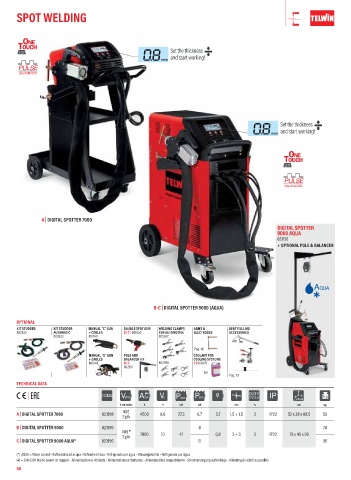

Page 56 - Telwin_2023

SPOT WELDING

Set the thickness
and start working!
mm
PULSE
GALVANISED

Set the thickness
and start working!
mm

PULSE
GALVANISED

A | DIGITAL SPOTTER 7000
DIGITAL SPOTTER
9000 AQUA
823196
+ OPTIONAL POLE & BALANCER

AQUA

B-C | DIGITAL SPOTTER 9000 (AQUA)

OPTIONAL
KIT STUDDER KIT STUDDER MANUAL “C“ GUN DOUBLE SPOT GUN WELDING CLAMPS ARMS & DENT PULLING
802832 AUTOMATIC + CABLES B | C | 801052 FOR AUTOMOTIVE ELECTRODES ACCESSORIES
802627
802833
802833 801041 802627
Pag. 101
MANUAL “X“ GUN POLE AND COOLANT FOR
+ CABLES BALANCER KIT COOLING SYSTEMS
R KIT
801043 B | C 802586 C | 802976
802811
5 l
Pag. 49
TECHNICAL DATA
DUTY IP
CODE V2PH AOUT VO PMAX P50% CYCLE LxWxH
V (50-60Hz) A V kW kW mm % cm kg
400
A | DIGITAL SPOTTER 7000 823198 4500 8,6 27,3 6,7 0,7 1,5 + 1,5 3 IP22 52 x 38 x 88,5 50
2 ph
B | DIGITAL SPOTTER 9000 823195 8 78
400 7000 10 47 0,8 3 + 3 3 IP22 79 x 45 x 90
2 ph
C | DIGITAL SPOTTER 9000 AQUA* 823196 11 95

(*) AQUA = Water cooled - Raffreddata ad acqua - Refroidie à l’eau - Refrigerada por agua - Wassergekühlte - Refrigerada por água
( ) = 208-230V Mains power on request - Alimentazione a richiesta - Alimentation sur demande - Alimentación a requerimiento - Stromversorgung auf Anfrage - Alimentação elétrica a pedido
