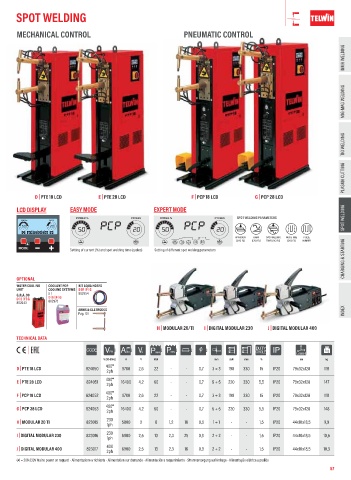

SPOT WELDING

MECHANICAL CONTROL PNEUMATIC CONTROLCONTROL

MMA WELDING

MIG-MAG WELDING

TIG WELDING

PLASMA CUTTING

D | PTE 18 LCD E | PTE 28 LCD F | PCP 18 LCD G | PCP 28 LCD

LCD DISPLAY EASY MODE EXPERT MODE
SPOT WELDING PARAMETERS SPOT WELDING
POWER % CYCLES
%
POWER
APPROACH RAMP SPOT WELDING PAUSE TIME PULSE
CHARGING & STARTING
(CYCLES) (CYCLES) TIME (CYCLES) (CYCLES) NUMBER
TIME
MODE
Setting of current (%) and spot welding time (cycles) Setting of different spot welding parameters
OPTIONAL
WATER COOLING COOLANT FOR KIT AQUA HOSES
UNIT COOLING SYSTEMS D | E | F | G
5 l 802954
G.R.A. 90
D | E | F | G D | E | F | G
802043 802976
ARMS & ELETRODES INDEX
Pag. 101
H | MODULAR 20/TI I | DIGITAL MODULAR 230 J | DIGITAL MODULAR 400
TECHNICAL DATA
DUTY
CODE VPH AOUT VO PMAX P50% CYCLE IP LxWxH
V (50-60Hz) A V kVA mm daN mm % cm kg
400
D | PTE 18 LCD 824050 9700 2,6 22 - - 0,7 3 + 3 190 330 15 IP20 79x32x128 118
2ph
400
E | PTE 28 LCD 824051 16400 4,2 60 - - 0,7 5 + 5 220 330 5,5 IP20 79x32x128 147
2ph
400
F | PCP 18 LCD 824052 9700 2,6 22 - - 0,7 3 + 3 190 330 15 IP20 79x32x128 118
2ph
400
G | PCP 28 LCD 824053 16400 4,2 60 - - 0,7 5 + 5 220 330 5,5 IP20 79x32x128 148
2ph
230
H | MODULAR 20 TI 823015 5800 2 6 1,2 16 0,9 1 + 1 - - 1,5 IP20 44x10x18,5 9,9
1ph
230
I | DIGITAL MODULAR 230 823016 6900 2,5 13 2,3 25 0,9 2 + 2 - - 1,5 IP20 44x10x18,5 10,5
1ph
400
J | DIGITAL MODULAR 400 823017 6900 2,5 13 2,3 16 0,9 2 + 2 - - 1,5 IP20 44x10x18,5 10,3
2ph
( ) = 208-230V Mains power on request - Alimentazione a richiesta - Alimentation sur demande - Alimentación a requerimiento - Stromversorgung auf Anfrage - Alimentação elétrica a pedido
