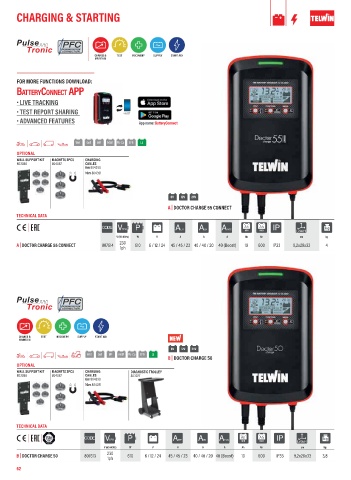

Page 62 - Telwin_2023

CHARGING & STARTING

CHARGE & TEST RECOVERY SUPPLY START AID
MAINTAIN

FOR MORE FUNCTIONS DOWNLOAD:
BATTERYCONNECTAPP

• LIVE TRACKING
• TEST REPORT SHARING via BT
• ADVANCED FEATURES App name: BatteryConnect

Wet Gel MF AGM Pb-Ca EFB Li
OPTIONAL
WALL SUPPORT KIT MAGNETS 3PCS CHARGING
803086 804087 CABLES
6m 804390
10m 804391

6V 12V 24V
A | DOCTOR CHARGE 55 CONNECT
TECHNICAL DATA

CODE V1PH P AEFF AEN A1V/C Ah Ah IP
MIN MAX LxWxH
V (50-60Hz) W V A A A Ah Ah cm kg
230
A | DOCTOR CHARGE 55 CONNECT 807614 610 6 / 12 / 24 45 / 45 / 23 40 / 40 / 20 40 (Boost) 10 600 IP33 9,2x20x33 4
1ph

CHARGE & TEST RECOVERY SUPPLY START AID
MAINTAIN
6V 12V 24V
Wet Gel MF AGM Pb-Ca EFB Li
B | DOCTOR CHARGE 50
OPTIONAL
WALL SUPPORT KIT MAGNETS 3PCS CHARGING DIAGNOSTIC TROLLEY
803086 804087 CABLES 803077
6m 804390
10m 804391

TECHNICAL DATA
CODE V1PH P AEFF AEN A1V/C Ah Ah IP LxWxH
MIN
MAX
V (50-60Hz) W V A A A Ah Ah cm kg
230
B | DOCTOR CHARGE 50 807613 610 6 / 12 / 24 45 / 45 / 23 40 / 40 / 20 40 (Boost) 10 600 IP33 9,2x20x33 3,8
1ph
62
