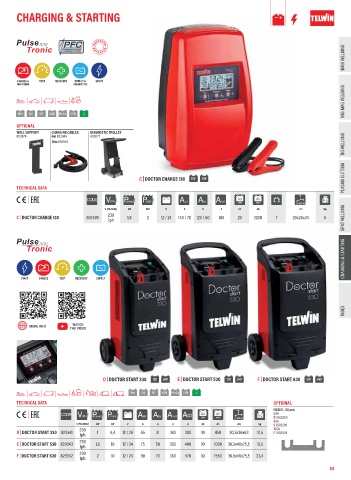

Page 63 - Telwin_2023

CHARGING & STARTING

MMA WELDING

CHARGE & TEST RECOVERY SUPPLY & START
MAINTAIN DIAGNOSTIC
MIG-MAG WELDING

Wet Gel MF AGM Pb-Ca EFB Li

OPTIONAL
WALL SUPPORT CHARGING CABLES DIAGNOSTIC TROLLEY
TIG WELDING
803078 6m 802945 803077 77
10m 802946

PLASMA CUTTING

C | DOCTOR CHARGE 130 12V 24V
TECHNICAL DATA

CODE V 1PH AEFF AEN A1V/C Ah Ah
PSTART
PCHARGE
MIN MAX LxWxH
V (50-60Hz) kW kW V A A A Ah Ah cm kg
230
C | DOCTOR CHARGE 130 807599 1,8 2 12 / 24 140 / 70 120 / 60 180 20 1200 7 20x26x34 6 SPOT WELDING
1ph
CHARGING & STARTING

START CHARGE TEST RECOVERY SUPPLY

INDEX

D | DOCTOR START 330 12V 24V E | DOCTOR START 530 12V 24V F | DOCTOR START 630 12V 24V
Wet Gel MF AGM Pb-Ca EFB Li

TECHNICAL DATA OPTIONAL
FUSES - 20 pcs
CODE START Ah Ah 50A
V1PH PCHARGE PSTART AEFF AEN A1V/C AMAX D | 802259
MIN MAX LxWxH
80A
V (50-60Hz) kW kW V A A A A Ah Ah cm kg
E | 802260
230 100A
D | DOCTOR START 330 829341 1 6,4 12 / 24 45 31 180 300 10 450 30,5x36x63 12,5 F | 802029
1ph
230
E | DOCTOR START 530 829343 1,6 10 12 / 24 75 50 300 400 10 1000 36,5x46x75,5 19,5
1ph
230
F | DOCTOR START 630 829342 2 10 12 / 24 90 70 360 570 10 1550 36,5x46x75,5 23,4
1ph
63
