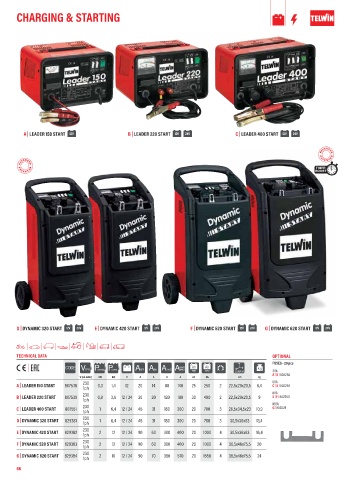

CHARGING & STARTING

A | LEADER 150 START 12V B | LEADER 220 START 12V 24V C | LEADER 400 START 12V 24V

D | DYNAMIC 320 START 12V 24V E | DYNAMIC 420 START 12V 24V F | DYNAMIC 520 START 12V 24V G | DYNAMIC 620 START 12V 24V

TECHNICAL DATA OPTIONAL
FUSES - 20 pcs
CODE START Ah Ah
V1PH PCHARGE PSTART AEFF AEN A1V/C AMAX MIN MAX LxWxH 30A
A | B | 802258
V (50-60Hz) kW kW V A A A A Ah Ah cm kg
230 50A
A | LEADER 150 START 807538 0,3 1,4 12 20 14 80 140 25 250 2 22,5x29x20,5 6,4 C | D | 802259
1ph
230 80A
B | LEADER 220 START 807539 0,8 3,6 12 / 24 30 20 120 180 30 400 2 22,5x29x20,5 9 E | F | 802260
1ph
100A
230
C | LEADER 400 START 807551 1 6,4 12 / 24 45 31 180 300 20 700 3 26,5x34,5x23 10,9 G | 802029
1ph
230
D | DYNAMIC 320 START 829381 1 6,4 12 / 24 45 31 180 300 20 700 3 30,5x36x63 13,4
1ph
230
E | DYNAMIC 420 START 829382 2 12 12 / 24 90 60 300 400 20 1000 4 30,5x36x63 16,4
1ph
230
F | DYNAMIC 520 START 829383 2 12 12 / 24 90 60 300 400 20 1000 4 36,5x46x75,5 20
1ph
230
G | DYNAMIC 620 START 829384 2 10 12 / 24 90 70 360 570 20 1550 4 36,5x46x75,5 24
1ph
66
