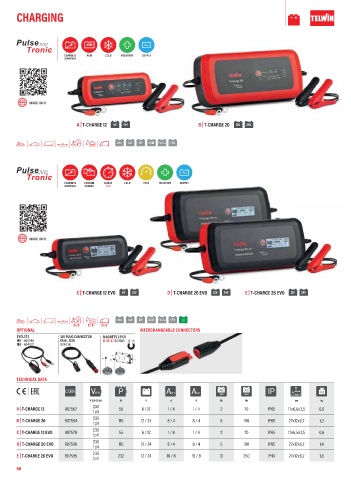

Page 60 - Telwin_2023

CHARGING

CHARGE & AGM COLD RECOVERY SUPPLY
MAINTAIN

A | T-CHARGE 12 6V 12V B | T-CHARGE 20 12V 24V

Wet Gel MF AGM Pb-Ca EFB

Li
CHARGE & CUSTOM BOOST COLD TEST RECOVERY SUPPLY
MAINTAIN CHARGE D | E

C | T-CHARGE 12 EVO 6V 12V D | T-CHARGE 20 EVO 12V 24V E | T-CHARGE 26 EVO 12V 24V

Wet Gel MF AGM Pb-Ca EFB Li
D | E D | E D | E
OPTIONAL INTERCHANGEABLE CONNECTORS
EYELETS 12V PLUG CONNECTOR MAGNETS 2 PCS
M6 – 802986 DUAL SIZE B | D | E | 803088
M8 – 804037 804038

TECHNICAL DATA
CODE V1PH P AEFF AEN Ah Ah IP LxWxH
MIN
MAX
V (50-60Hz) W V A A Ah Ah cm kg
230
A | T-CHARGE 12 807567 55 6 / 12 1 / 4 1 / 4 2 70 IP65 17x6,5x3,5 0,6
1 ph
230
B | T-CHARGE 20 807594 115 12 / 24 8 / 4 8 / 4 5 180 IP65 27x12x6,7 1,3
1 ph
230
C | T-CHARGE 12 EVO 807578 55 6 / 12 1 / 4 1 / 4 2 70 IP65 17x6,5x3,5 0,6
1ph
230
D | T-CHARGE 20 EVO 807596 115 12 / 24 8 / 4 8 / 4 5 180 IP65 27x12x6,7 1,4
1 ph
230
E | T-CHARGE 26 EVO 807595 232 12 / 24 16 / 8 16 / 8 10 250 IP44 27x12x6,7 1,6
1ph
60
