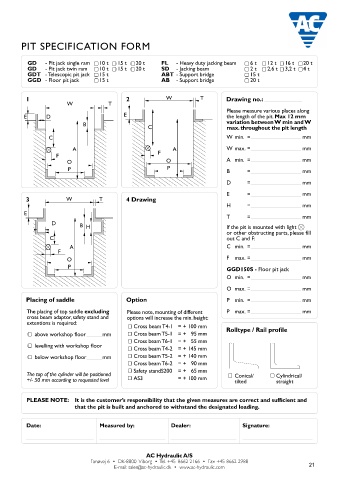

PIT SPECIFICATION FORM

GD - Pit jack single ram 10 t 15 t 20 t FL - Heavy duty jacking beam 6 t 12 t 16 t 20 t
GD - Pit jack twin ram 10 t 15 t 20 t SD - Jacking beam 2 t 2,6 t 3,2 t 4 t
GDT - Telescopic pit jack 15 t ABT - Support bridge 15 t
GGD - Floor pit jack 15 t AB - Support bridge 20 t

1 2 W T Drawing no.:
W T
Please measure various places along
E D E the length of the pit. Max 12 mm
B C variation between W min and W
max. throughout the pit length

C W min. = mm
A A W max. = mm
F F
O O A min. = mm
P P B = mm

D = mm

E = mm
3 W T 4 Drawing
H = mm
E
T = mm
D B H If the pit is mounted with light
or other obstructing parts, please fill
C out C and F:
A C min. = mm
F
O F max. = mm
P GGD150S - Floor pit jack
O min. = mm
O max. = mm

Placing of saddle Option P min. = mm

The placing of top saddle excluding Please note, mounting of different P max. = mm
cross beam adaptor, safety stand and options will increase the min. height:
extentions is required:
Cross beam T4-1 = + 100 mm
above workshop floor mm Cross beam T5-1 = + 95 mm Rolltype / Rail profile
Cross beam T6-1 = + 55 mm
levelling with workshop floor
Cross beam T4-2 = + 145 mm
below workshop floor mm Cross beam T5-2 = + 140 mm
Cross beam T6-2 = + 90 mm
Safety standS200 = + 65 mm
The top of the cylinder will be positioned Conical/ Cylindrical/
+/- 50 mm according to requested level AS3 = + 100 mm tilted straight

PLEASE NOTE: It is the customer’s responsibility that the given measures are correct and sufficient and
that the pit is built and anchored to withstand the designated loading.

Date: Measured by: Dealer: Signature:

AC Hydraulic A/S
Fanøvej 6 • DK-8800 Viborg • Tel. +45 8662 2166 • Fax +45 8662 2988
E-mail: sales@ac-hydraulic.dk • www.ac-hydraulic.com 21
