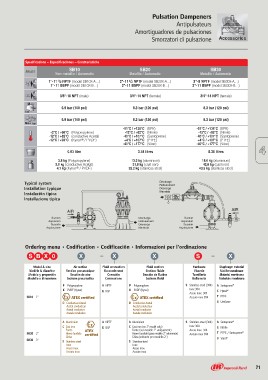

Page 71 - Air-powered pumps 180

Pulsation Dampeners
Antipulsateurs

Amortiguadores de pulsaciones
Smorzatori di pulsazione

Specifications – Especificaciones – Caratteristiche

Model SB10 SB20 SB30

Non-metallic / Automatic Metallic / Automatic Metallic / Automatic

1"- 11 1/2 NPTF (model SB10X-A…) 2"- 11 1/2 NPTF (model SB20X-A…) 3"- 8 NPTF (model SB30X-A…)
1"- 11 BSPF (model SB10X-B…) 2"- 11 BSPF (model SB20X-B…) 3"- 11 BSPF (model SB30X-B…)

3/8"-18 NPT (male) 3/4"-14 NPT (female) 3/4"-14 NPT (female)

bar 6.9 bar (100 psi) 8.3 bar (120 psi) 8.3 bar (120 psi)
bar
6.9 bar (100 psi) 8.3 bar (120 psi) 8.3 bar (120 psi)

+2°C / +66°C (Polypropylene) -51°C / +138°C (EPR) -51°C / +138°C (EPR)
-12°C / +82°C (conductive Acetal) -12°C / +82°C (Nitrile) -12°C / +82°C (Nitrile)
-12°C / +93°C (Kynar ® / PVDF) -40°C / +107°C (Santoprene) -40°C / +107°C (Santoprene)
+4°C / +107°C (PTFE) +4°C / +107°C (PTFE)
0.93 litre -40°C / +177°C (Viton) -40°C / +177°C (Viton) 4

3.8 kg (Polypropylene) 3.18 litres 8.35 litres
3.9 kg (conductive Acetal)
4.1 kg (Kynar ® / PVDF) 13.2 kg (aluminium) 18.6 kg (aluminium)
31.8 kg (cast iron) 42.6 kg (cast iron)
32.2 kg (stainless steel) 43.5 kg (stainless steel)

Typical system Discharge
Installation typique Refoulement
Instalación típica Descarga
Installazione tipica Mandata

Back
Pressure
Gauge
(Optional)

AIR AIR

Suction Discharge Suction
Aspiration Refoulement Aspiration
Descarga
Succión Mandata Succión
Aspirazione Aspirazione

Ordering menu • Codification • Codificación • Informazioni per l'ordinazione

SBX 0 X –X X S– X

Model & size Air section Fluid connection Fluid section Hardware Diaphragm material
Modèle & diamètre Section pneumatique Raccordement Section fluide Visserie Matière membrane
Modelo y proporción Sección de fluidos Tornillería Material membrana
Modello e dimensione Sección de aire Conexión Sezione fluidi Bulloneria Materiale membrana
Sezione pneumatica Connessione
SB10 1"
P Polypropylene A NPTF P Polypropylene S Stainless steel (304) A Santoprene®
K PVDF (Kynar) B BSP K PVDF (Kynar) Inox 304 C Hytrel®
Acero inox. 304 T PTFE
ATEX certified ATEX certified Acciaio inox 304 U Urethane

D Conductive Acetal D Conductive Acetal
Acetal conducteur Acetal conducteur
Acetal conductor Acetal conductor
Acetale conduttivo Acetale conduttivo

A Aluminium ATEX A NPTF A Aluminium S Stainless steel (304) A Santoprene®
certified B BSP Inox 304 G Nitrile
C Cast iron C Cast iron (on 2" model only) Acero inox. 304 T PTFE / Santoprene®
SB20 2" Fonte Fonte (sur modèle 2" uniquement) Acciaio inox 304 V Viton®
SB30 3" Hierro fundido Hierro fundido (para modelo 2" solamente)
Ghisa Ghisa (soltanto per modello 2")

S Stainless steel S Stainless steel
Inox Inox
Acero inox. Acero inox.
Acciaio inox Acciaio inox

71
