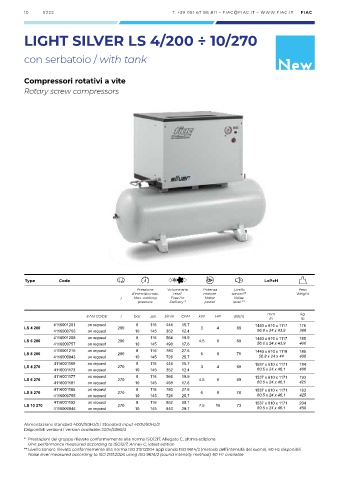

Page 10 - Skruvkompressorer_2022

10 S222 T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT FIAC

LIGHT SILVER LS 4/200 ÷ 10/270

con serbatoio / with tank New

Compressori rotativi a vite

Rotary screw compressors

Type Code LxPxH
Pressione Volume aria Potenza Livello Peso
d’esercizio max. resa* motore sonoro** Weight
l Max. working Free Air Motor Noise
pressure Delivery * power level **
mm kg
EAN CODE l bar psi l/min CFM kW HP dB(A)
in lb
4116001201 on request 8 116 444 15.7 1443 x 610 x 1117 176
LS 4 200 200 3 4 69
4116000756 on request 10 145 352 12.4 56.8 x 24 x 43.9 388
4116001208 on request 8 116 564 19.9 1443 x 610 x 1117 185
LS 6 200 200 4.5 6 69
4116000757 on request 10 145 498 17.6 56.8 x 24 x 43.9 408
4116001215 on request 8 116 780 27.6 1443 x 610 x 1118 185
LS 8 200 200 6 8 70
4116000843 on request 10 145 726 25.7 56.8 x 24 x 44 408
4116001169 on request 8 116 444 15.7 1537 x 610 x 1171 184
LS 4 270 270 3 4 69
4116001173 on request 10 145 352 12.4 60.5 x 24 x 46.1 406
4116001177 on request 8 116 564 19.9 1537 x 610 x 1171 193
LS 6 270 270 4.5 6 69
4116001181 on request 10 145 498 17.6 60.5 x 24 x 46.1 425
4116001185 on request 8 116 780 27.6 1537 x 610 x 1171 193
LS 8 270 270 6 8 70
4116000755 on request 10 145 726 25.7 60.5 x 24 x 46.1 425
4116001192 on request 8 116 852 30.1 1537 x 610 x 1171 204
LS 10 270 270 7.5 10 73
4116000846 on request 10 145 840 29.7 60.5 x 24 x 46.1 450
Alimentazione standard 400V/50Hz/3 / Standard input 400V/50Hz/3
Disponibili versioni / Version available: 230V/50Hz/3
* Prestazioni del gruppo rilevate conformemente alla norma ISO1217, Allegato C, ultima edizione
Unit performance measured according to ISO1217, Annex C, latest edition
** Livello sonoro rilevato conformemente alla norma ISO 2151:2004 applicando ISO 9614/2 (metodo dell’intensità del suono). 60 Hz disponibili
Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method). 60 Hz available
