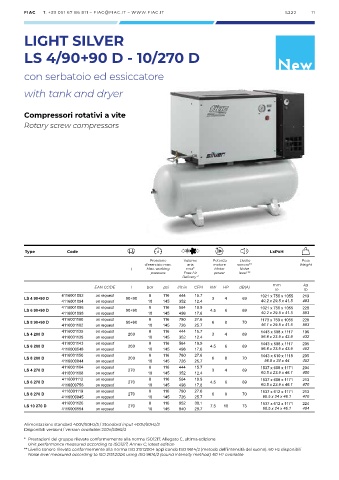

Page 11 - Skruvkompressorer_2022

FIAC T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT S222 11

LIGHT SILVER

LS 4/90+90 D - 10/270 D New

con serbatoio ed essiccatore

with tank and dryer

Compressori rotativi a vite
Rotary screw compressors

Type Code LxPxH

Pressione Volume Potenza Livello Peso
d’esercizio max. aria motore sonoro** Weight
l Max. working resa* Motor Noise
pressure Free Air power level **
Delivery *
mm kg
EAN CODE l bar psi l/min CFM kW HP dB(A)
in lb
4116001092 on request 8 116 444 15.7 1021 x 750 x 1055 219
LS 4 90+90 D 90+90 3 4 69
4116001094 on request 10 145 352 12.4 40.2 x 29.5 x 41.5 483
4116001096 on request 8 116 564 19.9 1021 x 750 x 1055 228
LS 6 90+90 D 90+90 4.5 6 69
4116001098 on request 10 145 498 17.6 40.2 x 29.5 x 41.5 503
4116001100 on request 8 116 780 27.6 1173 x 750 x 1055 228
LS 8 90+90 D 90+90 6 8 70
4116001102 on request 10 145 726 25.7 46.1 x 29.5 x 41.5 503
4116001135 on request 8 116 444 15.7 1443 x 608 x 1117 196
LS 4 200 D 200 3 4 69
4116001139 on request 10 145 352 12.4 56.8 x 23.9 x 43.9 432
4116001143 on request 8 116 564 19.9 1443 x 608 x 1117 205
LS 6 200 D 200 4.5 6 69
4116000548 on request 10 145 498 17.6 56.8 x 23.9 x 43.9 452
4116001150 on request 8 116 780 27.6 1443 x 610 x 1118 205
LS 8 200 D 200 6 8 70
4116000844 on request 10 145 726 25.7 56.8 x 24 x 44 452
4116001104 on request 8 116 444 15.7 1537 x 608 x 1171 204
LS 4 270 D 270 3 4 69
4116001108 on request 10 145 352 12.4 60.5 x 23.9 x 46.1 450
4116001112 on request 8 116 564 19.9 1537 x 608 x 1171 213
LS 6 270 D 270 4.5 6 69
4116000758 on request 10 145 498 17.6 60.5 x 23.9 x 46.1 470
4116001119 on request 8 116 780 27.6 1537 x 612 x 1171 213
LS 8 270 D 270 6 8 70
4116000845 on request 10 145 726 25.7 60.5 x 24 x 46.1 470
4116001126 on request 8 116 852 30.1 1537 x 612 x 1171 224
LS 10 270 D 270 7.5 10 73
4116000554 on request 10 145 840 29.7 60.5 x 24 x 46.1 494
Alimentazione standard 400V/50Hz/3 / Standard input 400V/50Hz/3
Disponibili versioni / Version available: 230V/50Hz/3
* Prestazioni del gruppo rilevate conformemente alla norma ISO1217, Allegato C, ultima edizione
Unit performance measured according to ISO1217, Annex C, latest edition
** Livello sonoro rilevato conformemente alla norma ISO 2151:2004 applicando ISO 9614/2 (metodo dell’intensità del suono). 60 Hz disponibili
Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method). 60 Hz available
