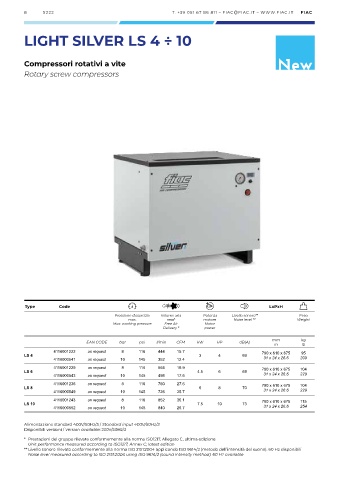

LIGHT SILVER LS 4 ÷ 10

Compressori rotativi a vite New
Rotary screw compressors

Type Code LxPxH
Pressione d’esercizio Volume aria Potenza Livello sonoro** Peso
max. resa* motore Noise level ** Weight
Max. working pressure Free Air Motor
Delivery * power
EAN CODE bar psi l/min CFM kW HP dB(A) mm kg
in lb
4116001222 on request 8 116 444 15.7 790 x 610 x 675 95
LS 4 3 4 69
4116000541 on request 10 145 352 12.4 31 x 24 x 26.6 209
4116001229 on request 8 116 564 19.9 790 x 610 x 675 104
LS 6 4.5 6 69
4116000543 on request 10 145 498 17.6 31 x 24 x 26.6 229
4116001236 on request 8 116 780 27.6 790 x 610 x 675 104
LS 8 6 8 70
4116000549 on request 10 145 726 25.7 31 x 24 x 26.6 229
4116001243 on request 8 116 852 30.1 790 x 610 x 675 115
LS 10 7.5 10 73
4116000552 on request 10 145 840 29.7 31 x 24 x 26.6 254

Alimentazione standard 400V/50Hz/3 / Standard input 400V/50Hz/3
Disponibili versioni / Version available: 230V/50Hz/3
* Prestazioni del gruppo rilevate conformemente alla norma ISO1217, Allegato C, ultima edizione
Unit performance measured according to ISO1217, Annex C, latest edition
** Livello sonoro rilevato conformemente alla norma ISO 2151:2004 applicando ISO 9614/2 (metodo dell’intensità del suono). 60 Hz disponibili
Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method). 60 Hz available
