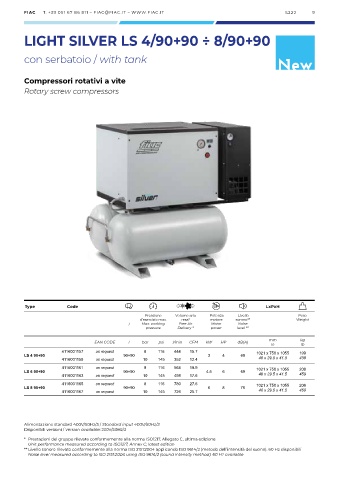

LIGHT SILVER LS 4/90+90 ÷ 8/90+90

con serbatoio / with tank New

Compressori rotativi a vite

Rotary screw compressors

Type Code LxPxH
Pressione Volume aria Potenza Livello Peso
d’esercizio max. resa* motore sonoro** Weight
l Max. working Free Air Motor Noise
pressure Delivery * power level **
EAN CODE l bar psi l/min CFM kW HP dB(A) mm kg
in lb
4116001157 on request 8 116 444 15.7 1021 x 750 x 1055 199
LS 4 90+90 90+90 3 4 69
4116001159 on request 10 145 352 12.4 40 x 29.5 x 41.5 438
4116001161 on request 8 116 564 19.9 1021 x 750 x 1055 208
LS 6 90+90 90+90 4.5 6 69
4116001163 on request 10 145 498 17.6 40 x 29.5 x 41.5 459
4116001165 on request 8 116 780 27.6 1021 x 750 x 1055 208
LS 8 90+90 90+90 6 8 70
4116001167 on request 10 145 726 25.7 40 x 29.5 x 41.5 459

Alimentazione standard 400V/50Hz/3 / Standard input 400V/50Hz/3
Disponibili versioni / Version available: 230V/50Hz/3
* Prestazioni del gruppo rilevate conformemente alla norma ISO1217, Allegato C, ultima edizione
Unit performance measured according to ISO1217, Annex C, latest edition
** Livello sonoro rilevato conformemente alla norma ISO 2151:2004 applicando ISO 9614/2 (metodo dell’intensità del suono). 60 Hz disponibili
Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method). 60 Hz available
