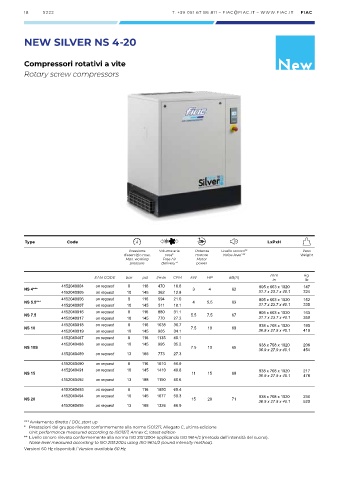

Page 18 - Skruvkompressorer_2022

18 S222 T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT FIAC

NEW SILVER NS 4-20

Compressori rotativi a vite New
Rotary screw compressors

Type Code LxPxH
Pressione Volume aria Potenza Livello sonoro** Peso
d’esercizio max. resa* motore Noise level ** Weight
Max. working Free Air Motor
pressure Delivery * power

mm kg
EAN CODE bar psi l/min CFM kW HP dB(A)
in lb
4152040004 on request 8 116 470 16.6 805 x 603 x 1020 147
NS 4*** 3 4 62
4152040005 on request 10 145 362 12.8 31.7 x 23.7 x 40.1 324
4152040006 on request 8 116 594 21.0 805 x 603 x 1020 152
NS 5.5*** 4 5.5 63
4152040007 on request 10 145 511 18.1 31.7 x 23.7 x 40.1 335
4152040016 on request 8 116 880 31.1 805 x 603 x 1020 163
NS 7.5 5.5 7.5 67
4152040017 on request 10 145 770 27.2 31.7 x 23.7 x 40.1 359
4152040018 on request 8 116 1038 36.7 938 x 708 x 1020 190
NS 10 7.5 10 69
4152040019 on request 10 145 965 34.1 36.9 x 27.9 x 40.1 419
4152040487 on request 8 116 1135 40.1
4152040488 on request 10 145 995 35.2 938 x 708 x 1020 206
NS 10S 7.5 10 65 36.9 x 27.9 x 40.1 454
4152040489 on request 13 188 773 27.3
4152040490 on request 8 116 1610 56.9
4152040491 on request 10 145 1410 49.8 938 x 708 x 1020 217
NS 15 11 15 69 36.9 x 27.9 x 40.1 478
4152040492 on request 13 188 1150 40.6
4152040493 on request 8 116 1850 65.4
4152040494 on request 10 145 1677 59.3 938 x 708 x 1020 236
NS 20 15 20 71 36.9 x 27.9 x 40.1 520
4152040495 on request 13 188 1326 46.9

*** Avviamento diretto / DOL start up
* Prestazioni del gruppo rilevate conformemente alla norma ISO1217, Allegato C, ultima edizione
Unit performance measured according to ISO1217, Annex C, latest edition
** Livello sonoro rilevato conformemente alla norma ISO 2151:2004 applicando ISO 9614/2 (metodo dell’intensità del suono).
Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method).
Versioni 60 Hz disponibili / Version available 60 Hz
