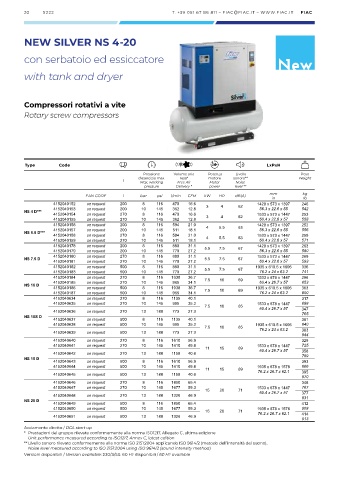

Page 20 - Skruvkompressorer_2022

20 S222 T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT FIAC

NEW SILVER NS 4-20

con serbatoio ed essiccatore New

with tank and dryer

Compressori rotativi a vite
Rotary screw compressors

Type Code LxPxH
Pressione Volume aria Potenza Livello Peso
d’esercizio max. resa* motore sonoro** Weight
l Max. working Free Air Motor Noise
pressure Delivery * power level **
mm kg
EAN CODE l bar psi l/min CFM kW HP dB(A)
in lb
4152040152 on request 200 8 116 470 16.6 1429 x 573 x 1397 246
4152040153 on request 200 10 145 362 12.8 3 4 62 56.3 x 22.6 x 55 542
NS 4 D***
4152040154 on request 270 8 116 470 16.6 3 4 62 1533 x 573 x 1447 253
4152040155 on request 270 10 145 362 12.8 60.4 x 22.6 x 57 558
4152040156 on request 200 8 116 594 21.0 1429 x 573 x 1397 252
4152040157 on request 200 10 145 511 18.1 4 5.5 63 56.3 x 22.6 x 55 556
NS 5.5 D***
4152040158 on request 270 8 116 594 21.0 4 5.5 63 1533 x 573 x 1447 259
4152040159 on request 270 10 145 511 18.1 60.4 x 22.6 x 57 571
4152040178 on request 200 8 116 880 31.1 1429 x 573 x 1397 263
4152040179 on request 200 10 145 770 27.2 5.5 7.5 67 56.3 x 22.6 x 55 580
4152040180 on request 270 8 116 880 31.1 1533 x 573 x 1447 269
NS 7.5 D 5.5 7.5 67
4152040181 on request 270 10 145 770 27.2 60.4 x 22.6 x 57 593
4152040182 on request 500 8 116 880 31.1 5.5 7.5 67 1935 x 610.5 x 1606 336
4152040183 on request 500 10 145 770 27.2 76.2 x 24 x 63.2 741
4152040184 on request 270 8 116 1038 36.7 1533 x 678 x 1447 296
4152040185 on request 270 10 145 965 34.1 7.5 10 69 60.4 x 26.7 x 57 653
NS 10 D
4152040186 on request 500 8 116 1038 36.7 7.5 10 69 1935 x 610.5 x 1606 363
4152040187 on request 500 10 145 965 34.1 76.2 x 24 x 63.2 800
4152040634 on request 270 8 116 1135 40.1 317
4152040635 on request 270 10 145 995 35.2 1533 x 678 x 1447 698
7.5 10 65 60.4 x 26.7 x 57
4152040636 on request 270 13 188 773 27.3 347
NS 10S D 765
4152040637 on request 500 8 116 1135 40.1 381
4152040638 on request 500 10 145 995 35.2 1935 x 610.5 x 1606 840
7.5 10 65 76.2 x 24 x 63.2
4152040639 on request 500 13 188 773 27.3 383
844
4152040640 on request 270 8 116 1610 56.9 329
4152040641 on request 270 10 145 1410 49.8 1533 x 678 x 1447 725
11 15 69 60.4 x 26.7 x 57
4152040642 on request 270 13 188 1150 40.6 358
789
NS 15 D
4152040643 on request 500 8 116 1610 56.9 393
4152040644 on request 500 10 145 1410 49.8 1935 x 678 x 1578 866
11 15 69
4152040645 on request 500 13 188 1150 40.6 76.2 x 26.7 x 62.1 395
870
4152040646 on request 270 8 116 1850 65.4 348
4152040647 on request 270 10 145 1677 59.3 1533 x 678 x 1447 767
15 20 71
4152040648 on request 270 13 188 1326 46.9 60.4 x 26.7 x 57 377
831
NS 20 D
4152040649 on request 500 8 116 1850 65.4 412
4152040650 on request 500 10 145 1677 59.3 1935 x 678 x 1578 908
15 20 71
4152040651 on request 500 13 188 1326 46.9 76.2 x 26.7 x 62.1 414
913
Avviamento diretto / DOL start up
* Prestazioni del gruppo rilevate conformemente alla norma ISO1217, Allegato C, ultima edizione
Unit performance measured according to ISO1217, Annex C, latest edition
** Livello sonoro rilevato conformemente alla norma ISO 2151:2004 applicando ISO 9614/2 (metodo dell’intensità del suono).
Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method).
Versioni disponibili / Version available: 230/3/50. 60 Hz disponibili / 60 Hz available
