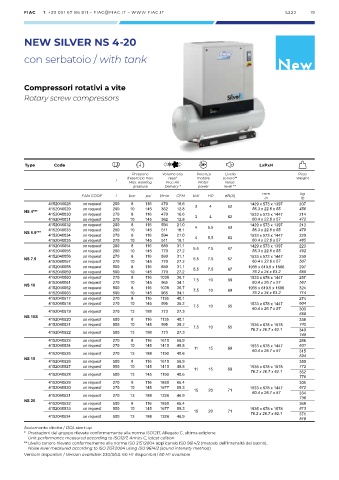

Page 19 - Skruvkompressorer_2022

FIAC T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT S222 19

NEW SILVER NS 4-20

con serbatoio / with tank New

Compressori rotativi a vite
Rotary screw compressors

Type Code LxPxH
Pressione Volume aria Potenza Livello Peso
d’esercizio max. resa* motore sonoro** Weight
l Max. working Free Air Motor Noise
pressure Delivery * power level **
mm kg
EAN CODE l bar psi l/min CFM kW HP dB(A)
in lb
4152040028 on request 200 8 116 470 16.6 1429 x 573 x 1397 207
4152040029 on request 200 10 145 362 12.8 3 4 62 56.3 x 22.6 x 55 456
NS 4***
4152040030 on request 270 8 116 470 16.6 3 4 62 1533 x 573 x 1447 214
4152040031 on request 270 10 145 362 12.8 60.4 x 22.6 x 57 472
4152040032 on request 200 8 116 594 21.0 1429 x 573 x 1397 213
4152040033 on request 200 10 145 511 18.1 4 5.5 63 56.3 x 22.6 x 55 470
NS 5.5***
4152040034 on request 270 8 116 594 21.0 4 5.5 63 1533 x 573 x 1447 220
4152040035 on request 270 10 145 511 18.1 60.4 x 22.6 x 57 485
4152040054 on request 200 8 116 880 31.1 1429 x 573 x 1397 223
4152040055 on request 200 10 145 770 27.2 5.5 7.5 67 56.3 x 22.6 x 55 492
4152040056 on request 270 8 116 880 31.1 1533 x 573 x 1447 230
NS 7.5 5.5 7.5 67
4152040057 on request 270 10 145 770 27.2 60.4 x 22.6 x 57 507
4152040058 on request 500 8 116 880 31.1 5.5 7.5 67 1935 x 610.5 x 1606 297
4152040059 on request 500 10 145 770 27.2 76.2 x 24 x 63.2 655
4152040060 on request 270 8 116 1038 36.7 1533 x 678 x 1447 257
4152040061 on request 270 10 145 965 34.1 7.5 10 69 60.4 x 26.7 x 57 567
NS 10
4152040062 on request 500 8 116 1038 36.7 7.5 10 69 1935 x 610.5 x 1606 324
4152040063 on request 500 10 145 965 34.1 76.2 x 24 x 63.2 714
4152040517 on request 270 8 116 1135 40.1 274
4152040518 on request 270 10 145 995 35.2 1533 x 678 x 1447 604
7.5 10 65 60.4 x 26.7 x 57
4152040519 on request 270 13 188 773 27.3 303
NS 10S 668
4152040520 on request 500 8 116 1135 40.1 338
4152040521 on request 500 10 145 995 35.2 1935 x 678 x 1578 745
7.5 10 65 76.2 x 26.7 x 62.1
4152040522 on request 500 13 188 773 27.3 340
749
4152040523 on request 270 8 116 1610 56.9 286
4152040524 on request 270 10 145 1410 49.8 1533 x 678 x 1447 631
11 15 69 60.4 x 26.7 x 57
4152040525 on request 270 13 188 1150 40.6 315
694
NS 15
4152040526 on request 500 8 116 1610 56.9 350
4152040527 on request 500 10 145 1410 49.8 1935 x 678 x 1578 772
11 15 69
4152040528 on request 500 13 145 1150 40.6 76.2 x 26.7 x 62.1 352
776
4152040529 on request 270 8 116 1850 65.4 305
4152040530 on request 270 10 145 1677 59.3 1533 x 678 x 1447 672
15 20 71
4152040531 on request 270 13 188 1326 46.9 60.4 x 26.7 x 57 334
736
NS 20
4152040532 on request 500 8 116 1850 65.4 369
4152040533 on request 500 10 145 1677 59.3 1935 x 678 x 1578 813
15 20 71
4152040534 on request 500 13 188 1326 46.9 76.2 x 26.7 x 62.1 371
818
Avviamento diretto / DOL start up
* Prestazioni del gruppo rilevate conformemente alla norma ISO1217, Allegato C, ultima edizione
Unit performance measured according to ISO1217, Annex C, latest edition
** Livello sonoro rilevato conformemente alla norma ISO 2151:2004 applicando ISO 9614/2 (metodo dell’intensità del suono).
Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method).
Versioni disponibili / Version available: 230/3/50. 60 Hz disponibili / 60 Hz available
