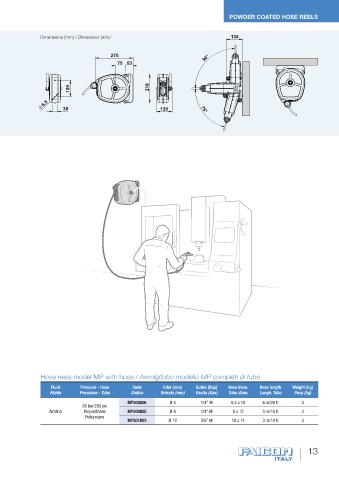

POWDER COATED HOSE REELS

Dimensions (mm) / Dimensioni (mm) 130

275 90°
75 53

120 218

8.5
30 120 75°

Hose reels model MP with hose / Avvolgitubo modello MP completi di tubo
Fluid Pressure - Hose Code Inlet (mm) Outlet (Bsp) Hose diam. Hose length Weight (kg)
Fluido Pressione - Tubo Codice Entrata (mm) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg)
MP200606 Ø 8 1/4” M 6,5 x 10 6 m/20 ft 3
20 bar/290 psi
Air/Aria Polyurethane MP200805 Ø 8 1/4” M 8 x 12 5 m/16 ft 3
Poliuretano
MP201003 Ø 10 3/8” M 10 x 14 3 m/10 ft 3

13
