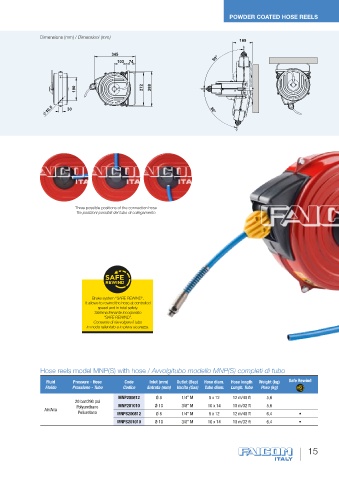

P. 15
POWDER COATED HOSE REELS
Dimensions (mm) / Dimensioni (mm)
165
345
103 74 90°
190 272 288
10.5 30 80°
Three possible positions of the connection hose
Tre posizioni possibili del tubo di collegamento
Brake system “SAFE REWIND”.
It allows to rewind the hose at controlled
speed and in total safety.
Sistema frenante incorporato
“SAFE REWIND”.
Consente di riavvolgere il tubo
in modo rallentato e in piena sicurezza.
Hose reels model MNP(S) with hose / Avvolgitubo modello MNP(S) completi di tubo
Fluid Pressure - Hose Code Inlet (mm) Outlet (Bsp) Hose diam. Hose length Weight (kg) Safe Rewind
Fluido Pressione - Tubo Codice Entrata (mm) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg)
MNP200812 Ø8 1/4” M 8 x 12 12 m/40 ft 5,6
20 bar/290 psi
Polyurethane MNP201010 Ø 10 3/8” M 10 x 14 10 m/32 ft 5,6
Air/Aria
Poliuretano MNPS200812 Ø8 1/4” M 8 x 12 12 m/40 ft 6,4 •
MNPS201010 Ø 10 3/8” M 10 x 14 10 m/32 ft 6,4 •
15
