P. 17

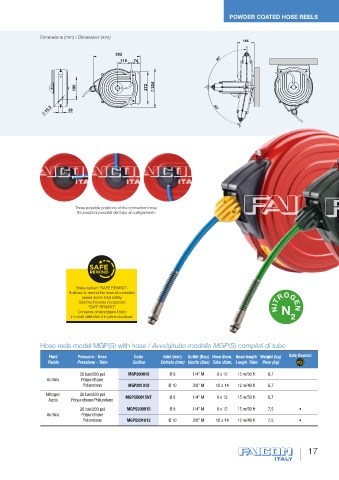

POWDER COATED HOSE REELS
Dimensions (mm) / Dimensioni (mm)
165
392
115 74 90°
190 272 324
10.5 30 80°
Three possible positions of the connection hose
Tre posizioni possibili del tubo di collegamento
Brake system “SAFE REWIND”.
It allows to rewind the hose at controlled
speed and in total safety.
Sistema frenante incorporato
“SAFE REWIND”.
Consente di riavvolgere il tubo
in modo rallentato e in piena sicurezza.
Hose reels model MGP(S) with hose / Avvolgitubo modello MGP(S) completi di tubo
Fluid Pressure - Hose Code Inlet (mm) Outlet (Bsp) Hose diam. Hose length Weight (kg) Safe Rewind
Fluido Pressione - Tubo Codice Entrata (mm) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg)
20 bar/290 psi MGP200815 Ø8 1/4” M 8 x 12 15 m/50 ft 6,7
Air/Aria Polyurethane
Poliuretano MGP201012 Ø 10 3/8” M 10 x 14 12 m/40 ft 6,7
Nitrogen 20 bar/290 psi MGP200815NT
Azoto Polyurethane/Poliuretano Ø8 1/4” M 8 x 12 15 m/50 ft 6,7
20 bar/290 psi MGPS200815 Ø8 1/4” M 8 x 12 15 m/50 ft 7,5 •
Air/Aria Polyurethane
Poliuretano MGPS201012 Ø 10 3/8” M 10 x 14 12 m/40 ft 7,5 •
17
