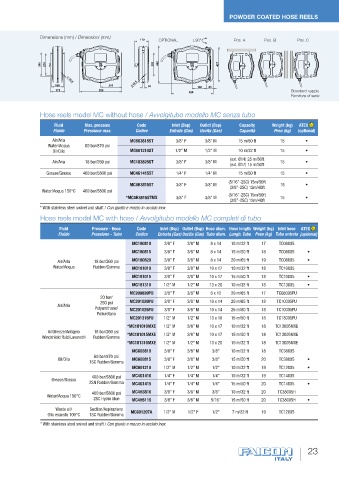

POWDER COATED HOSE REELS

Dimensions (mm) / Dimensioni (mm)
170 OPTIONAL + 90° Pos. A Pos. B Pos. C
-

295 270 292 462 427

10.5
10.5
150 260 30 180 80
175 520 Standard supply
520
Fornitura di serie
Hose reels model MC without hose / Avvolgitubo modello MC senza tubo

Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Peso (kg) (optional)
Air/Aria MC603815ST 3/8” F 3/8” M 15 m/50 ft 15 •
Water/Acqua 60 bar/870 psi
Oil/Olio MC601210ST 1/2” M 1/2” M 10 m/32 ft 15 •
(ext. Ø14) 25 m/80ft
Air/Aria 18 bar/260 psi MC183825ST 3/8” F 3/8” M 15 •
(ext. Ø17) 15 m/50ft
Grease/Grasso 400 bar/5800 psi MC4G1415ST 1/4” F 1/4” M 15 m/50 ft 15 •
(5/16”-2SC) 15m/50ft
MC4H3815ST 3/8” F 3/8” M (3/8”-2SC) 12m/40ft 15 •
Water/Acqua 150°C 400 bar/5800 psi
*MC4H3815STMX 3/8” F 3/8” M (5/16”-2SC) 15m/50ft 15 •
(3/8”-2SC) 12m/40ft
* With stainless steel swivel and shaft / Con giunto e mozzo in acciaio inox
Hose reels model MC with hose / Avvolgitubo modello MC completi di tubo

Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
MC180810 3/8” F 3/8” M 8 x 14 10 m/32 ft 17 TC08005
MC180815 3/8” F 3/8” M 8 x 14 15 m/50 ft 18 TC08005 •

Air/Aria 18 bar/260 psi MC180820 3/8” F 3/8” M 8 x 14 20 m/65 ft 19 TC08005 •
Water/Acqua Rubber/Gomma MC181010 3/8” F 3/8” M 10 x 17 10 m/32 ft 18 TC10005
MC181015 3/8” F 3/8” M 10 x 17 15 m/50 ft 18 TC10005 •
MC181310 1/2” M 1/2” M 13 x 20 10 m/32 ft 18 TC13005 •
MC200820PU 3/8” F 3/8” M 8 x 12 20 m/65 ft 17 TC08005PU
20 bar/
290 psi MC201020PU 3/8” F 3/8” M 10 x 14 20 m/65 ft 18 TC10005PU
Air/Aria
Polyurethane/ MC201025PU 3/8” F 3/8” M 10 x 14 25 m/80 ft 18 TC10005PU
Poliuretano
MC201315PU 1/2” M 1/2” M 13 x 18 15 m/50 ft 18 TC13005PU
*MC181010MXE 1/2” M 3/8” M 10 x 17 10 m/32 ft 18 TC13005MXE
Antifreeze/Antigelo 18 bar/260 psi *MC181015MXE
Windshield fluid/Lavavetri Rubber/Gomma 1/2” M 3/8” M 10 x 17 15 m/50 ft 18 TC13005MXE
*MC181310MXE 1/2” M 1/2” M 13 x 20 10 m/32 ft 18 TC13005MXE
MC603810 3/8” F 3/8” M 3/8” 10 m/32 ft 18 TC38005
60 bar/870 psi
Oil/Olio MC603815 3/8” F 3/8” M 3/8” 15 m/50 ft 20 TC38005 •
1SC Rubber/Gomma
MC601210 1/2” M 1/2” M 1/2” 10 m/32 ft 19 TC12005 •
400 bar/5800 psi MC4G1410 1/4” F 1/4” M 1/4” 10 m/32 ft 19 TC14005
Grease/Grasso
2SN Rubber/Gomma MC4G1415 1/4” F 1/4” M 1/4” 15 m/50 ft 20 TC14005 •
400 bar/5800 psi MC4H3810 3/8” F 3/8” M 3/8” 10 m/32 ft 20 TC38005H
Water/Acqua 150°C
2SC Hydro blue MC4H5115 3/8” F 3/8” M 5/16” 15 m/50 ft 20 TC38005H •
Waste oil/ Suction/Aspirazione MC601207A
Olio esausto 100°C 1SC Rubber/Gomma 1/2” M 1/2” F 1/2” 7 m/22 ft 19 TC12005
* With stainless steel swivel and shaft / Con giunto e mozzo in acciaio inox
