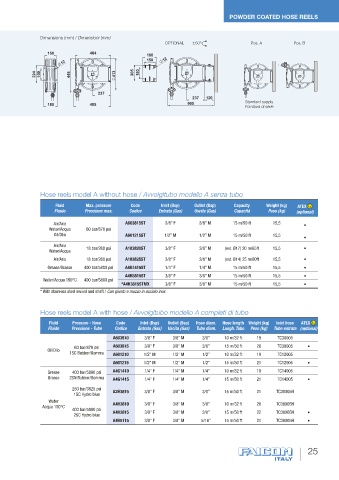

POWDER COATED HOSE REELS

Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 60° Pos. A Pos. B
-

Standard supply
Fornitura di serie

Hose reels model A without hose / Avvolgitubo modello A senza tubo
Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Peso (kg) (optional)
Air/Aria A603815ST 3/8” F 3/8” M 15 m/50 ft 15,5 •
Water/Acqua 60 bar/870 psi
Oil/Olio A601215ST 1/2” M 1/2” M 15 m/50 ft 15,5
•
Air/Aria A183820ST
Water/Acqua 18 bar/260 psi 3/8” F 3/8” M (ext. Ø17) 20 m/65ft 15,5 •
Air/Aria 18 bar/260 psi A183825ST 3/8” F 3/8” M (ext. Ø14) 25 m/80ft 15,5 •
Grease/Grasso 400 bar/5800 psi A4G1415ST 1/4” F 1/4” M 15 m/50 ft 15,5 •
A4H3815ST 3/8” F 3/8” M 15 m/50 ft 15,5 •
Water/Acqua 150°C 400 bar/5800 psi
*A4H3815STMX 3/8” F 3/8” M 15 m/50 ft 15,5 •
* With stainless steel swivel and shaft / Con giunto e mozzo in acciaio inox

Hose reels model A with hose / Avvolgitubo modello A completi di tubo
Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
A603810 3/8” F 3/8” M 3/8” 10 m/32 ft 19 TC38005

60 bar/870 psi A603815 3/8” F 3/8” M 3/8” 15 m/50 ft 20 TC38005 •
Oil/Olio
1SC Rubber/Gomma A601210 1/2” M 1/2” M 1/2” 10 m/32 ft 19 TC12005
A601215 1/2” M 1/2” M 1/2” 15 m/50 ft 21 TC12005 •
Grease 400 bar/5800 psi A4G1410 1/4” F 1/4” M 1/4” 10 m/32 ft 19 TC14005
Grasso 2SN Rubber/Gomma A4G1415 1/4” F 1/4” M 1/4” 15 m/50 ft 21 TC14005 •

250 bar/3625 psi A2H3815 3/8” F 3/8” M 3/8” 15 m/50 ft 21 TC38005H
1SC Hydro blue
Water A4H3810
Acqua 150°C 3/8” F 3/8” M 3/8” 10 m/32 ft 20 TC38005H
400 bar/5800 psi A4H3815 3/8” F 3/8” M 3/8” 15 m/50 ft 22 TC38005H
2SC Hydro blue •
A4H5115 3/8” F 3/8” M 5/16” 15 m/50 ft 21 TC38005H •
