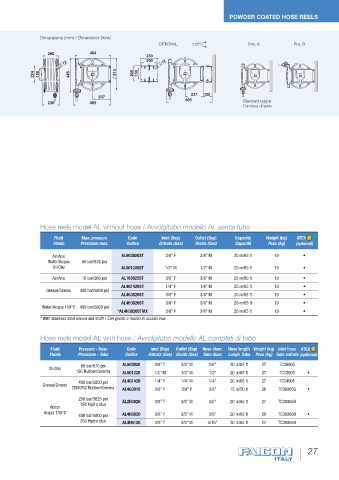

POWDER COATED HOSE REELS

Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 50° Pos. A Pos. B
-

Standard supply
Fornitura di serie

Hose reels model AL without hose / Avvolgitubo modello AL senza tubo

Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Peso (kg) (optional)

Air/Aria AL603820ST 3/8” F 3/8” M 20 m/65 ft 19 •
Water/Acqua 60 bar/870 psi
Oil/Olio AL601220ST 1/2” M 1/2” M 20 m/65 ft 19 •
Air/Aria 18 bar/260 psi AL183825ST 3/8” F 3/8” M 25 m/80 ft 19 •
AL4G1420ST 1/4” F 1/4” M 20 m/65 ft 19 •
Grease/Grasso 400 bar/5800 psi
AL4G3820ST 3/8” F 3/8” M 20 m/65 ft 19 •
AL4H3820ST 3/8” F 3/8” M 20 m/65 ft 19 •
Water/Acqua 150°C 400 bar/5800 psi
*AL4H3820STMX 3/8” F 3/8” M 20 m/65 ft 19 •
* With stainless steel swivel and shaft / Con giunto e mozzo in acciaio inox

Hose reels model AL with hose / Avvolgitubo modello AL completi di tubo

Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)

60 bar/870 psi AL603820 3/8” F 3/8” M 3/8” 20 m/65 ft 27 TC38005
Oil/Olio
1SC Rubber/Gomma AL601220 1/2” M 1/2” M 1/2” 20 m/65 ft 27 TC12005 •
400 bar/5800 psi AL4G1420 1/4” F 1/4” M 1/4” 20 m/65 ft 27 TC14005
Grease/Grasso
2SN/2SC Rubber/Gomma AL4G3815 3/8” F 3/8” F 3/8” 15 m/50 ft 26 TC38005G •
250 bar/3625 psi AL2H3820 3/8” F 3/8” M 3/8” 20 m/65 ft 27 TC38005H
1SC Hydro blue
Water
Acqua 150°C AL4H3820 3/8” F 3/8” M 3/8” 20 m/65 ft 28 TC38005H •
400 bar/5800 psi
2SC Hydro blue AL4H5120 3/8” F 3/8” M 5/16” 20 m/65 ft 27 TC38005H
