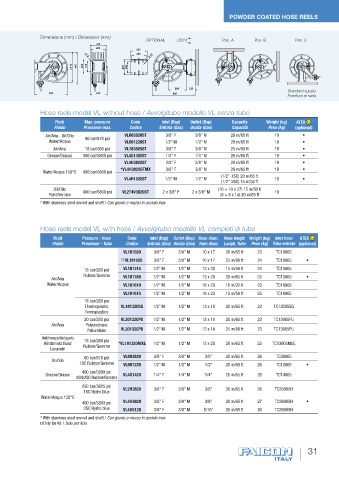

POWDER COATED HOSE REELS

Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 50° Pos. A Pos. B Pos. C
-
230
200
230
200
12 12
413 447 200 150 205 150

250 120
460 242 605 Standard supply
Fornitura di serie

Hose reels model VL without hose / Avvolgitubo modello VL senza tubo
Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Peso (kg) (optional)
Air/Aria - Oil/Olio 60 bar/870 psi VL603820ST 3/8” F 3/8” M 20 m/65 ft 19 •
Water/Acqua VL601220ST 1/2” M 1/2” M 20 m/65 ft 19 •
Air/Aria 18 bar/260 psi VL183825ST 3/8” F 3/8” M 25 m/80 ft 19 •
Grease/Grasso 400 bar/5800 psi VL4G1420ST 1/4” F 1/4” M 20 m/65 ft 19 •
VL4H3820ST 3/8” F 3/8” M 20 m/65 ft 19 •
*VL4H3820STMX 3/8” F 3/8” M 20 m/65 ft 19 •
Water/Acqua 150°C 400 bar/5800 psi
(1/2”-1SC) 20 m/65 ft
VL4H1220ST 1/2” M 1/2” M 19 •
(1/2”-2SC) 15 m/50 ft
Oil/Olio (10 + 10 x 17) 15 m/50 ft
Paint/Vernice 400 bar/5800 psi VL2T4V3820ST 2 x 3/8” F 2 x 3/8” M (8 + 8 x 14) 20 m/65 ft 19
* With stainless steel swivel and shaft / Con giunto e mozzo in acciaio inox

Hose reels model VL with hose / Avvolgitubo modello VL completi di tubo

Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
VL181020 3/8” F 3/8” M 10 x 17 20 m/65 ft 23 TC10005
VL181025 3/8” F 3/8” M 10 x 17 25 m/80 ft 24 TC10005 •

18 bar/260 psi VL181315 1/2” M 1/2” M 13 x 20 15 m/50 ft 24 TC13005
Rubber/Gomma VL181320
Air/Aria 1/2” M 1/2” M 13 x 20 20 m/65 ft 25 TC13005 •
Water/Acqua VL181610 1/2” M 1/2” M 16 x 23 10 m/32 ft 23 TC16005
VL181615 1/2” M 1/2” M 16 x 23 15 m/50 ft 25 TC16005
18 bar/260 psi
Thermoplastic VL181320SG 1/2” M 1/2” M 13 x 18 20 m/65 ft 23 TC13005SG
Termoplastico
20 bar/290 psi VL201320PU 1/2” M 1/2” M 13 x 18 20 m/65 ft 23 TC13005PU
Air/Aria Polyurethane
Poliuretano VL201325PU 1/2” M 1/2” M 13 x 18 25 m/80 ft 23 TC13005PU
Antifreeze/Antigelo
18 bar/260 psi
Windshield fluid/ Rubber/Gomma *VL181320MXE 1/2” M 1/2” M 13 x 20 20 m/65 ft 25 TC13005MXE
Lavavetri
60 bar/870 psi VL603820 3/8” F 3/8” M 3/8” 20 m/65 ft 26 TC38005
Oil/Olio
1SC Rubber/Gomma VL601220 1/2” M 1/2” M 1/2” 20 m/65 ft 26 TC12005 •
400 bar/5800 psi
Grease/Grasso VL4G1420 1/4” F 1/4” M 1/4” 20 m/65 ft 26 TC14005
2SN/2SC Rubber/Gomma
250 bar/3625 psi VL2H3820 3/8” F 3/8” M 3/8” 20 m/65 ft 26 TC38005H
1SC Hydro blue
Water/Acqua 150°C
400 bar/5800 psi VL4H3820 3/8” F 3/8” M 3/8” 20 m/65 ft 27 TC38005H •
2SC Hydro blue VL4H5120 3/8” F 3/8” M 5/16” 20 m/65 ft 26 TC38005H
* With stainless steel swivel and shaft / Con giunto e mozzo in acciaio inox
Only for Air / Solo per Aria
