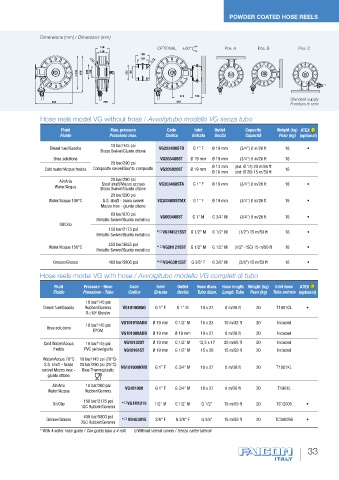

POWDER COATED HOSE REELS

Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 60° Pos. A Pos. B Pos. C
-

Standard supply
Fornitura di serie

Hose reels model VG without hose / Avvolgitubo modello VG senza tubo

Fluid Max. pressure Code Inlet Outlet Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata Uscita Capacità Peso (kg) (optional)
10 bar/145 psi
Diesel fuel/Gasolio VG203408STO G 1” F Ø 19 mm (3/4”) 8 m/26 ft 16 •
Brass Swivel/Giunto ottone
Urea solutions VG203408ST Ø 19 mm Ø 19 mm (3/4”) 8 m/26 ft 16
20 bar/290 psi
Cold water/Acqua fredda Composite swivel/Giunto composito VG205820ST Ø 19 mm Ø 13 mm (ext. Ø 17) 20 m/65 ft 16
Ø 16 mm (ext. Ø 20) 15 m/50 ft
Air/Aria 20 bar/290 psi
Steel shaft/Mozzo acciaio
Water/Acqua Brass Swivel/Giunto ottone VG203408STA G 1” F Ø 19 mm (3/4”) 8 m/26 ft 16 •
20 bar/290 psi
Water/Acqua 100°C S.S. shaft - brass swivel VG203408STMX G 1” F Ø 19 mm (3/4”) 8 m/26 ft 16 •
Mozzo inox - giunto ottone
60 bar/870 psi VG603408ST
Metallic Swivel/Giunto metallico G 1” M G 3/4” M (3/4”) 8 m/26 ft 16 •
Oil/Olio
150 bar/2175 psi
Metallic Swivel/Giunto metallico * VG1M1215ST G 1/2” M G 1/2” M (1/2”) 15 m/50 ft 16 •
250 bar/3625 psi
Water/Acqua 150°C * VG2H1215ST G 1/2” M G 1/2” M (1/2”-1SC) 15 m/50 ft 16 •
Metallic Swivel/Giunto metallico
Grease/Grasso 400 bar/5800 psi * VG4G3815ST G 3/8” F G 3/8” M (3/8”) 15 m/50 ft 16 •

Hose reels model VG with hose / Avvolgitubo modello VG completi di tubo
Fluid Pressure - Hose Code Inlet Outlet Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata Uscita Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)

10 bar/145 psi
Diesel fuel/Gasolio Rubber/Gomma VG101908GO G 1” F G 1” M 19 x 27 8 m/26 ft 20 T1901GL •
R<10 Ohm/m
6
VG101610ADB Ø 19 mm G 1/2” M 16 x 23 10 m/32 ft 20 Included
10 bar/145 psi
Urea solutions
EPDM
VG101908ADB Ø 19 mm Ø 19 mm 19 x 27 8 m/26 ft 20 Included
Cold Water/Acqua 10 bar/145 psi VG101320T Ø 19 mm G 1/2” M 12,5 x 17 20 m/65 ft 20 Included
fredda PVC yellow/giallo VG101615T Ø 19 mm G 1/2” M 15 x 20 15 m/50 ft 20 Included
Water/Acqua 70°C 10 bar/145 psi (70°C)
S.S. shaft - brass 20 bar/290 psi (25°C)
swivel Mozzo inox - Blue Thermoplastic VG101908KMX G 1” F G 3/4” M 19 x 27 8 m/26 ft 20 T1901KL
giunto ottone
Air/Aria 18 bar/260 psi
Water/Acqua Rubber/Gomma VG181908 G 1” F G 3/4” M 19 x 27 8 m/26 ft 20 T1901L
150 bar/2175 psi
Oil/Olio * VG1M1215 1/2” M G 1/2” M G 1/2” 15 m/50 ft 20 TC12005 •
1SC Rubber/Gomma
400 bar/5800 psi
Grease/Grasso * VG4G3815 3/8” F G 3/8” F G 3/8” 15 m/50 ft 20 TC38005G •
2SC Rubber/Gomma
* With 4-roller hose guide / Con guida tubo a 4 rulli Without lateral covers / Senza carter laterali
