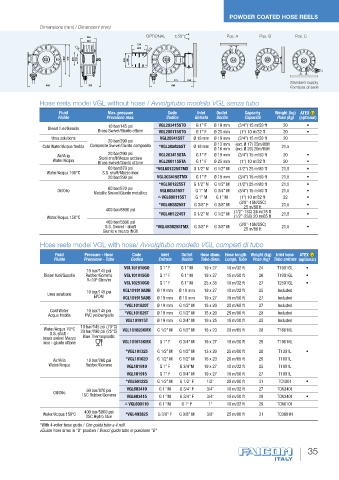

POWDER COATED HOSE REELS
Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 50° Pos. A Pos. B Pos. C
230 -
200
230
200 12
12
442 475 200 150 205 150

275 120
Standard supply
495 300 640
Fornitura di serie
Hose reels model VGL without hose / Avvolgitubo modello VGL senza tubo
Fluid Max. pressure Code Inlet Outlet Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata Uscita Capacità Peso (kg) (optional)
10 bar/145 psi VGL203415STO G 1” F Ø 19 mm (3/4”) 15 m/50 ft 20 •
Diesel fuel/Gasolio
Brass Swivel/Giunto ottone VGL200115STO G 1” F Ø 25 mm (1”) 10 m/32 ft 20 •
Urea solutions 20 bar/290 psi VGL203415ST Ø 19 mm Ø 19 mm (3/4”) 15 m/50 ft 20
Cold Water/Acqua fredda Composite Swivel/Giunto composito *VGL205825ST Ø 19 mm Ø 13 mm (ext. Ø 17) 25m/80ft 21,5
(ext. Ø 20) 20m/65ft
Ø 16 mm
Air/Aria 20 bar/290 psi VGL203415STA G 1” F Ø 19 mm (3/4”) 15 m/50 ft 20 •
Steel shaft/Mozzo acciaio
Water/Acqua Brass swivel/Giunto ottone VGL200115STA G 1” F Ø 25 mm (1”) 10 m/32 ft 20 •
60 bar/870 psi *VGL601225STMX G 1/2” M G 1/2” M (1/2”) 25 m/80 ft 21,5 •
Water/Acqua 100°C S.S. shaft/Mozzo inox
20 bar/290 psi VGL203415STMX G 1” F Ø 19 mm (3/4”) 15 m/50 ft 21,5 •
*VGL601225ST G 1/2” M G 1/2” M (1/2”) 25 m/80 ft 21,5 •
60 bar/870 psi
Oil/Olio VGL603415ST G 1” M G 3/4” M (3/4”) 15 m/50 ft 21,5 •
Metallic Swivel/Giunto metallico
VGL600115ST G 1” M G 1” M (1”) 10 m/32 ft 22 •
*VGL4H3825ST G 3/8” F G 3/8” M (3/8”-1SN/2SC) 21,5 •
25 m/80 ft
400 bar/5800 psi (1/2”-1SC) 24 m/78 ft
*VGL4H1224ST G 1/2” M G 1/2” M 21,5 •
Water/Acqua 150°C (1/2”-2SC) 20 m/65 ft
400 bar/5800 psi
S.S. Swivel - shaft *VGL4H3825STMX G 3/8” F G 3/8” M (3/8”-1SN/2SC) 21,5 •
Giunto e mozzo INOX 25 m/80 ft
Hose reels model VGL with hose/ Avvolgitubo modello VGL completi di tubo
Fluid Pressure - Hose Code Inlet Outlet Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata Uscita Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
VGL101910GO G 1” F G 1” M 19 x 27 10 m/32 ft 24 T1901GL •
10 bar/145 psi
Diesel fuel/Gasolio Rubber/Gomma VGL101915GO G 1” F G 1” M 19 x 27 15 m/50 ft 26 T1901GL •
R<10 Ohm/m
6
VGL102510GO G 1” F G 1” M 25 x 35 10 m/32 ft 27 T2501GL •
10 bar/145 psi VGL101910ADB Ø 19 mm Ø 19 mm 19 x 27 10 m/32 ft 25 Included
Urea solutions
EPDM VGL101915ADB Ø 19 mm Ø 19 mm 19 x 27 15 m/50 ft 27 Included
*VGL101620T Ø 19 mm G 1/2” M 15 x 20 20 m/65 ft 27 Included
Cold Water 10 bar/145 psi
Acqua fredda PVC yellow/giallo *VGL101625T Ø 19 mm G 1/2” M 15 x 20 25 m/80 ft 28 Included
VGL101915T Ø 19 mm G 3/4” M 19 x 25 15 m/50 ft 25 Included
Water/Acqua 70°C 10 bar/145 psi (70°C) VGL101620KMX G 1/2” M G 1/2” M 16 x 23 20 m/65 ft 28 T1601KL
20 bar/290 psi (25°C)
S.S. shaft -
brass swivel Mozzo Blue Thermoplastic
inox - giunto ottone VGL101915KMX G 1” F G 3/4” M 19 x 27 15 m/50 ft 29 T1901KL
*VGL181325 G 1/2” M G 1/2” M 13 x 20 25 m/80 ft 28 T1301L •
Air/Aria 18 bar/260 psi *VGL181620 G 1/2” M G 1/2” M 16 x 23 20 m/65 ft 29 T1601L
Water/Acqua Rubber/Gomma VGL181910 G 1” F G 3/4”M 19 x 27 10 m/32 ft 25 T1901L
VGL181915 G 1” F G 3/4” M 19 x 27 15 m/50 ft 27 T1901L
*VGL601225 G 1/2” M G 1/2” F 1/2” 25 m/80 ft 31 TC1201 •
60 bar/870 psi VGL603410 G 1” M G 3/4” F 3/4” 10 m/32 ft 27 TCN3401
Oil/Olio
1SC Rubber/Gomma VGL603415 G 1” M G 3/4” F 3/4” 15 m/50 ft 29 TCN3401 •
VGL600110 G 1” M G 1” F 1” 10 m/32 ft 29 TCN0101
400 bar/5800 psi
Water/Acqua 150ºC *VGL4H3825 G 3/8” F G 3/8” M 3/8” 25 m/80 ft 31 TC3801H
2SC Hydro blue
*With 4-roller hose guide / Con guida tubo a 4 rulli
Guide hose arms in “B” position / Bracci guida tubo in posizione “B”
