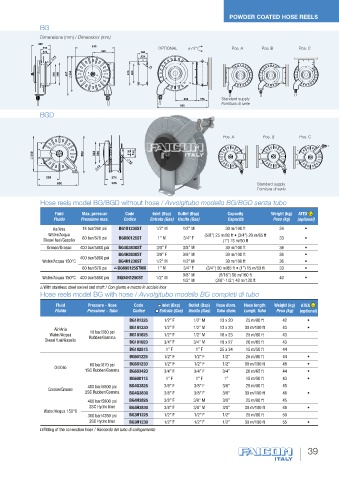

Page 39 - Faicom

POWDER COATED HOSE REELS
BG

Dimensions (mm) / Dimensioni (mm)
300
154 615 OPTIONAL + 70° Pos. A Pos. B Pos. C
-
124 340 160
13 124
13
300 348 607 550 370 300

338 176 Standard supply
Fornitura di serie
800
BGD

Pos. A Pos. B Pos. C

550 580 348 300 110 152

13 12
338 271
630 306 Standard supply
Fornitura di serie

Hose reels model BG/BGD without hose / Avvolgitubo modello BG/BGD senza tubo
Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Peso (kg) (optional)

Air/Aria 18 bar/260 psi BG181230ST 1/2” M 1/2” M 30 m/100 ft 34 •
Water/Acqua (5/8”) 25 m/80 ft • (3/4”) 20 m/65 ft
Diesel fuel/Gasolio 60 bar/870 psi BG600125ST 1” M 3/4” F (1”) 15 m/50 ft 33 •
Grease/Grasso 400 bar/5800 psi BG4G3830ST 3/8” F 3/8” M 30 m/100 ft 36 •
BG4H3830ST 3/8” F 3/8” M 30 m/100 ft 36 •
400 bar/5800 psi
Water/Acqua 150°C BG4H1230ST 1/2” M 1/2” M 30 m/100 ft 36 •
60 bar/870 psi BG600125STMX 1” M 3/4” F (3/4”) 20 m/65 ft • (1”) 15 m/50 ft 33 •
3/8” M (5/16”) 50 m/160 ft
Water/Acqua 150°C 400 bar/5800 psi BGD4H1250ST 1/2” M 40 •
1/2” M (3/8”-1/2”) 40 m/130 ft
With stainless steel swivel and shaft / Con giunto e mozzo in acciaio inox
Hose reels model BG with hose / Avvolgitubo modello BG completi di tubo
Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) (optional)
BG181325 1/2” F 1/2” M 13 x 20 25 m/80 ft 42 •
Air/Aria BG181330 1/2” F 1/2” M 13 x 20 30 m/100 ft 43 •
Water/Acqua 18 bar/260 psi BG181625 1/2” F 1/2” M 16 x 23 25 m/80 ft 43
Diesel fuel/Gasolio Rubber/Gomma BG181920 3/4” F 3/4” M 19 x 27 20 m/65 ft 43
BG182515 1” F 1” F 25 x 34 15 m/50 ft 44
BG601225 1/2” F 1/2” F 1/2” 25 m/80 ft 44 •
60 bar/870 psi BG601230 1/2” F 1/2” F 1/2” 30 m/100 ft 48 •
Oil/Olio
1SC Rubber/Gomma BG603420 3/4” F 3/4” F 3/4” 20 m/65 ft 44 •
BG600115 1” F 1” F 1” 15 m/50 ft 43 •
400 bar/5800 psi BG4G3825 3/8” F 3/8” F 3/8” 25 m/80 ft 45
Grease/Grasso
2SC Rubber/Gomma BG4G3830 3/8” F 3/8” F 3/8” 30 m/100 ft 48 •
400 bar/5800 psi BG4H3825 3/8” F 3/8” M 3/8” 25 m/80 ft 45
2SC Hydro blue BG4H3830 3/8” F 3/8” M 3/8” 30 m/100 ft 48 •
Water/Acqua 150°C
300 bar/4350 psi BG3H1225 1/2” F 1/2” F 1/2” 25 m/80 ft 50
2SC Hydro blue BG3H1230 1/2” F 1/2” F 1/2” 30 m/100 ft 55 •
Fitting of the connection hose / Raccordo del tubo di collegamento
