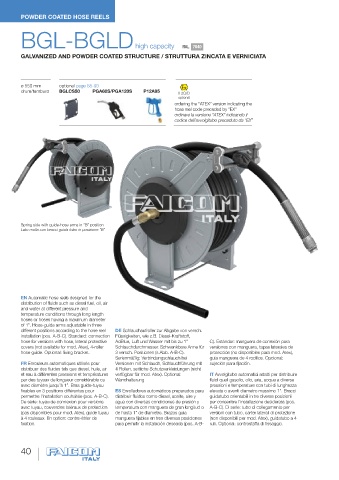

P. 40

POWDER COATED HOSE REELS




        BGL-BGLD high capacity                                   RAL  7040

        GALVANIZED AND POWDER COATED STRUCTURE / STRUTTURA ZINCATA E VERNICIATA




        ø 550 mm      optional page 88-93
        drum/tamburo  BGLCS50     PGA60S/PGA120S   P12A95       II 2G/D
                                                                optional
                                                              ordering the “ATEX”versionindicatingthe
                                                              hose reel code preceded by “EX”
                                                              ordinare la versione “ATEX” indicando il
                                                              codice dell’avvolgitubo preceduto da “EX”





















        Spring side with guide-hose arms in “B” position
        Lato molla con bracci guida tubo in posizione “B”













        EN Automatic hose reels designed for the
        distribution of fluids such as diesel fuel, oil, air
        and water at different pressure and
        temperature conditions through long length
        hoses or hoses having a maximum diameter
        of 1”. Hose-guide arms adjustable in three
        different positions according to the hose reel  DE Schlauchaufroller zur Abgabe von versch.
        installation (pos. A-B-C). Standard: connection  Flüssigkeiten, wie z.B. Diesel-Kraftstoff,
        hose for versions with hose, lateral protective  AdBlue, Luft und Wasser mit bis zu 1”  C). Estándar: manguera de conexión para
        covers (not available for mod. Atex), 4-roller  Schlauchdurchmesser. Schwenkbare Arme für  versiones con manguera, tapas laterales de
        hose guide. Optional: fixing bracket.  3versch.Positionen(s.Abb.A-B-C).  protección (no disponibles para mod. Atex),
                                          Serienmäßig: Verbindungschlauch bei  guía manguera de 4 rodillos. Opcional:
        FR Enrouleurs automatiques utilisés pour  Versionen mit Schlauch, Schlauchführung mit  sujeción para fijación.
        distribuer des fluides tels que diesel, huile, air  4Rollen,seitlicheSchutzverkleidungen(nicht
        et eau àdifférentespressionsettempératures  verfügbar für mod. Atex). Optional:  IT Avvolgitubo automatici adatti per distribuire
        par des tuyaux de longueur considérable ou  Wandhalterung          fluidi quali gasolio, olio, aria, acqua a diverse
        avec diamètre jusqu’à 1”. Bras guide-tuyau                         pressioni e temperature con tubi di lunghezza
        fixables en 3 positions différentes pour  ES Enrolladores automáticos preparados para  elevata o aventi diametro massimo 1”. Bracci
        permettre l’installation souhaitée (pos. A-B-C).  distribuir fluidos como diesel, aceite, aire y  guidatubo orientabili in tre diverse posizioni
        De série: tuyau de connexion pour versions  agua con diversas condiciones de presión y  per consentire l’installazione desiderata (pos.
        avec tuyau, couvercles latéraux de protection  temperatura con manguera de gran longitud o  A-B-C). Di serie: tubo di collegamento per
        (pas disponibles pour mod. Atex), guide tuyau  de hasta 1” de diametro. Brazos guía  versioni con tubo, carter laterali di protezione
        à4rouleaux.Enoption:contre-étrierde  manguera fijables en tres diversas posiciones  (non disponibili per mod. Atex), guidatubo a 4
        fixation.                          para permitir la instalación deseada (pos. A-B-  rulli. Optional: controstaffa di fissaggio.
