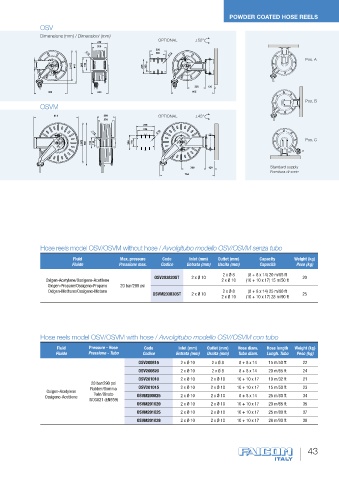

POWDER COATED HOSE REELS
OSV
Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 50°
230 -
200
230
12
200
12
Pos. A
413 447 200 150 205 150

250 120
460 240 605
Pos. B
OSVM
613 250 OPTIONAL + 45°
-
220
255
220
12
12
Pos. C
550 585 152 110 206 110

338 120 Standard supply
Fornitura di serie
754

Hose reels model OSV/OSVM without hose / Avvolgitubo modello OSV/OSVM senza tubo
Fluid Max. pressure Code Inlet (mm) Outlet (mm) Capacity Weight (kg)
Fluido Pressione max. Codice Entrata (mm) Uscita (mm) Capacità Peso (kg)

2xØ8 (8 + 8 x 14) 20 m/65 ft
OSV203820ST 2 x Ø 10 20
Oxigen-Acetylene/Ossigeno-Acetilene 2 x Ø 10 (10 + 10 x 17) 15 m/50 ft
Oxigen-Propane/Ossigeno-Propano 20 bar/290 psi
Oxigen-Methane/Ossigeno-Metano 2xØ8 (8 + 8 x 14) 25 m/80 ft
OSVM203830ST 2 x Ø 10 25
2 x Ø 10 (10 + 10 x 17) 28 m/90 ft

Hose reels model OSV/OSVM with hose / Avvolgitubo modello OSV/OSVM con tubo

Fluid Pressure - Hose Code Inlet (mm) Outlet (mm) Hose diam. Hose length Weight (kg)
Fluido Pressione - Tubo Codice Entrata (mm) Uscita (mm) Tubo diam. Lungh. Tubo Peso (kg)
OSV200815 2 x Ø 10 2xØ8 8 + 8 x 14 15 m/50 ft 22
OSV200820 2 x Ø 10 2xØ8 8 + 8 x 14 20 m/65 ft 24
OSV201010 2 x Ø 10 2 x Ø 10 10 + 10 x 17 10 m/32 ft 21
20 bar/290 psi
Rubber/Gomma OSV201015 2 x Ø 10 2 x Ø 10 10 + 10 x 17 15 m/50 ft 23
Oxigen-Acetylene Twin/Binato
Ossigeno-Acetilene OSVM200825 2 x Ø 10 2 x Ø 10 8 + 8 x 14 25 m/80 ft 34
ISO3821 (EN559)
OSVM201020 2 x Ø 10 2 x Ø 10 10 + 10 x 17 20 m/65 ft 35
OSVM201025 2 x Ø 10 2 x Ø 10 10 + 10 x 17 25 m/80 ft 37
OSVM201028 2 x Ø 10 2 x Ø 10 10 + 10 x 17 28 m/90 ft 38

43
