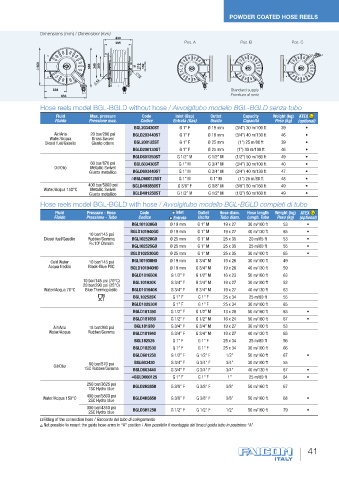

POWDER COATED HOSE REELS

Dimensions (mm) / Dimensioni (mm)
430
395 Pos. A Pos. B Pos. C

550 580 348 300 110 152

12
13
338 Standard supply
633 Fornitura di serie
Hose reels model BGL-BGLD without hose / Avvolgitubo modello BGL-BGLD senza tubo
Fluid Max. pressure Code Inlet (Bsp) Outlet Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita Capacità Peso (kg) (optional)
BGL203430ST G 1” F Ø 19 mm (3/4”) 30 m/100 ft 39 •
Air/Aria 20 bar/290 psi BGLD203440ST G 1” F Ø 19 mm (3/4”) 40 m/130 ft 46 •
Water/Acqua Brass Swivel
Diesel fuel/Gasolio Giunto ottone BGL200125ST G 1” F Ø 25 mm (1”) 25 m/80 ft 39 •
BGLD200130ST G 1” F Ø 25 mm (1”) 30 m/100 ft 46 •
BGLD601250ST G 1/2” M G 1/2” M (1/2”) 50 m/160 ft 49 •
60 bar/870 psi BGL603430ST G 1” M G 3/4” M (3/4”) 30 m/100 ft 40 •
Oil/Olio Metallic Swivel
Giunto metallico BGLD603440ST G 1” M G 3/4” M (3/4”) 40 m/130 ft 47 •
BGLD600125ST G 1” M G 1” M (1”) 25 m/80 ft 48 •
400 bar/5800 psi BGLD4H3850ST G 3/8” F G 3/8” M (3/8”) 50 m/160 ft 49 •
Water/Acqua 150°C Metallic Swivel
Giunto metallico BGLD4H1250ST G 1/2” M G 1/2” M (1/2”) 50 m/160 ft 49 •
Hose reels model BGL-BGLD with hose / Avvolgitubo modello BGL-BGLD completi di tubo
Fluid Pressure - Hose Code Inlet Outlet Hose diam. Hose length Weight (kg) ATEX
Fluido Pressione - Tubo Codice Entrata Uscita Tubo diam. Lungh. Tubo Peso (kg) (optional)
BGL101930GO Ø 19 mm G 1” M 19 x 27 30 m/100 ft 53 •
BGLD101940GO Ø 19 mm G 1” M 19 x 27 40 m/130 ft 65 •
10 bar/145 psi
Diesel fuel/Gasolio Rubber/Gomma BGL102520GO Ø 25 mm G 1” M 25 x 35 20 m/65 ft 53 •
R<10 Ohm/m
6
BGL102525GO Ø 25 mm G 1” M 25 x 35 25 m/80 ft 55 •
BGLD102530GO Ø 25 mm G 1” M 25 x 35 30 m/100 ft 65 •
Cold Water 10 bar/145 psi BGL101930HO Ø 19 mm G 3/4” M 19 x 26 30 m/100 ft 49
Acqua fredda Black-Blue PVC BGLD101940HO Ø 19 mm G 3/4” M 19 x 26 40 m/130 ft 59
BGLD101650K G 1/2” F G 1/2” M 16 x 23 50 m/160 ft 63
10 bar/145 psi (70°C) BGL101930K G 3/4” F G 3/4” M 19 x 27 30 m/100 ft 52
20 bar/290 psi (25°C)
Water/Acqua 70°C Blue Thermoplastic BGLD101940K G 3/4” F G 3/4” M 19 x 27 40 m/130 ft 63
BGL102525K G 1” F G 1” F 25 x 34 25 m/80 ft 55
BGLD102530K G 1” F G 1” F 25 x 34 30 m/100 ft 65
BGLD181350 G 1/2” F G 1/2” M 13 x 20 50 m/160 ft 63 •
BGLD181650 G 1/2” F G 1/2” M 16 x 24 50 m/160 ft 67 •
Air/Aria 18 bar/260 psi BGL181930 G 3/4” F G 3/4” M 19 x 27 30 m/100 ft 53
Water/Acqua Rubber/Gomma BGLD181940 G 3/4” F G 3/4” M 19 x 27 40 m/130 ft 65
BGL182525 G 1” F G 1” F 25 x 34 25 m/80 ft 56
BGLD182530 G 1” F G 1” F 25 x 34 30 m/100 ft 66
BGLD601250 G 1/2” F G 1/2” F 1/2” 50 m/160 ft 67 •
BGL603430
60 bar/870 psi
Oil/Olio 1SC Rubber/Gomma BGLD603440 G 3/4” F G 3/4” F 3/4” 30 m/100 ft 55 •
G 3/4” F
G 3/4” F
67
40 m/130 ft
3/4”
BGLD600125 G 1” F G 1” F 1” 25 m/80 ft 64 •
250 bar/3625 psi BGLD2H3850 G 3/8” F G 3/8” F 3/8” 50 m/160 ft 67
1SC Hydro blue
Water/Acqua 150°C 400 bar/5800 psi BGLD4H3850 G 3/8” F G 3/8” F 3/8” 50 m/160 ft 68 •
2SC Hydro blue
300 bar/4350 psi BGLD3H1250 G 1/2” F G 1/2” F 1/2” 50 m/160 ft 79 •
2SC Hydro blue
Fitting of the connection hose / Raccordo del tubo di collegamento
Not possible to mount the guide hose arms in “A” position / Non possibile il montaggio dei bracci guida tubo in posizione “A”
