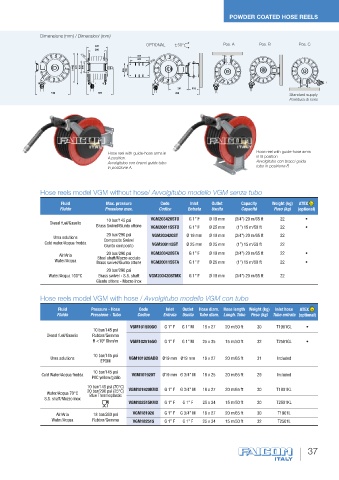

Page 37 - Faicom

POWDER COATED HOSE REELS

Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 50° Pos. A Pos. B Pos. C
305 -
260
12 305
260 12
442 470 193 160
205 160

291 152
512 385 682 Standard supply
Fornitura di serie

Hose reel with guide-hose arms in Hose reel with guide-hose arms
A position. in B position
Avvolgitubo con bracci guida tubo Avvolgitubo con bracci guida
in posizione A. tubo in posizione B

Hose reels model VGM without hose/ Avvolgitubo modello VGM senza tubo

Fluid Max. pressure Code Inlet Outlet Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata Uscita Capacità Peso (kg) (optional)

10 bar/145 psi VGM203420STO G 1” F Ø 19 mm (3/4”) 20 m/65 ft 22 •
Diesel fuel/Gasolio
Brass Swivel/Giunto ottone VGM200115STO G 1” F Ø 25 mm (1”) 15 m/50 ft 22 •
20 bar/290 psi VGM203420ST Ø 19 mm Ø 19 mm (3/4”) 20 m/65 ft 22
Urea solutions Composite Swivel
Cold water/Acqua fredda VGM200115ST
Giunto composito Ø 25 mm Ø 25 mm (1”) 15 m/50 ft 22
Air/Aria 20 bar/290 psi VGM203420STA G 1” F Ø 19 mm (3/4”) 20 m/65 ft 22 •
Steel shaft/Mozzo acciaio
Water/Acqua Brass swivel/Giunto ottone VGM200115STA G 1” F Ø 25 mm (1”) 15 m/50 ft 22 •
20 bar/290 psi
Water/Acqua 100°C Brass swivel - S.S. shaft VGM203420STMX G 1” F Ø 19 mm (3/4”) 20 m/65 ft 22
Giunto ottone - Mozzo inox

Hose reels model VGM with hose / Avvolgitubo modello VGM con tubo

Fluid Pressure - Hose Code Inlet Outlet Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata Uscita Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)

VGM101920GO G 1” F G 1” M 19 x 27 20 m/50 ft 30 T1901GL •
10 bar/145 psi
Diesel fuel/Gasolio Rubber/Gomma
R <10 Ohm/m VGM102515GO G 1” F G 1” M 25 x 35 15 m/50 ft 32 T2501GL •
6
10 bar/145 psi
Urea solutions VGM101920ADB Ø19 mm Ø19 mm 19 x 27 20 m/65 ft 31 Included
EPDM
10 bar/145 psi
Cold Water/Acqua fredda VGM101920T Ø19 mm G 3/4” M 19 x 25 20 m/65 ft 29 Included
PVC yellow/giallo
10 bar/145 psi (70°C) VGM101920KMX G 1” F G 3/4” M 19 x 27 20 m/65 ft 30 T1901KL
Water/Acqua 70°C 20 bar/290 psi (25°C)
Blue Thermoplastic
S.S. shaft/Mozzo inox
VGM102515KMX G 1” F G 1” F 25 x 34 15 m/50 ft 30 T2501KL
Air/Aria 18 bar/260 psi VGM181920 G 1” F G 3/4” M 19 x 27 20 m/65 ft 30 T1901L
Water/Acqua Rubber/Gomma VGM182515 G 1” F G 1” F 25 x 34 15 m/50 ft 32 T2501L
