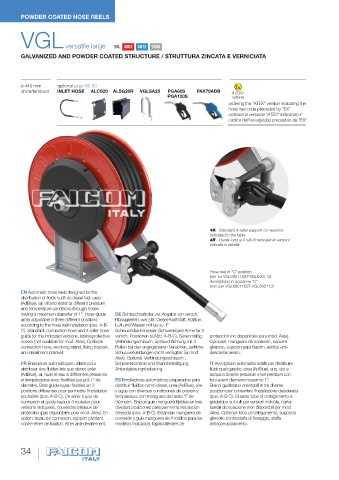

POWDER COATED HOSE REELS




        VGL versatile large              RAL  3002  5012  7040

        GALVANIZED AND POWDER COATED STRUCTURE / STRUTTURA ZINCATA E VERNICIATA




        ø 445 mm     optional page 88-93
        drum/tamburo  INLET HOSE  ALCS20  ALSG20R  VGLSA25  PGA60S    PAX70ADB     II 2G/D
                                                            PGA120S                optional
                                                                                 ordering the “ATEX”versionindicatingthe
                                                                                 hose reel code preceded by “EX”
                                                                                 ordinare la versione “ATEX” indicando il
                                                                                 codice dell’avvolgitubo preceduto da “EX”






















                                                                           4R - Standard 4-roller support on versions
                                                                           indicated in the table
                                                                           4R - Guida tubo a 4 rulli di serie per le versioni
                                                                           indicate in tabella




                                                                           Hose reel in “C” position
                                                                           (not for VGL600115ST-VGL600110)
                                                                           Avvolgitubo in posizione “C”
                                                                           (non per VGL600115ST-VGL600110)
        EN Automatic hose reels designed for the
        distribution of fluids such as diesel fuel, urea
        (AdBlue), air, oil and water at different pressure
        and temperature conditions through hoses
        having a maximum diameter of 1”. Hose-guide  DE Schlauchaufroller zur Abgabe von versch.
        arms adjustable in three different positions  Flüssigkeiten, wie z.B. Diesel-Kraftstoff, AdBlue,
        according to the hose reel installation (pos. A-B-  Luft und Wasser mit bis zu 1”
        C). Standard: connection hose and 4-roller hose  Schlauchdurchmesser. Schwenkbare Arme für 3
        guide for the indicated versions, lateral protective  versch. Positionen (s.Abb. A-B-C). Serienmäßig:  protección (no disponibles para mod. Atex).
        covers (not available for mod. Atex). Optional:  Verbindungschlauch, Schlauchführung mit 4  Opcional: manguera de conexión, soporte
        connection hose, revolving stand, fixing bracket,  Rollen bei den angegebenen Versionen, seitliche  giratorio, sujeción para fijación, estribo anti-
        anti-derailment bracket.          Schutzverkleidungen (nicht verfügbar für mod.  descarrilamiento.
                                          Atex). Optional: Verbindungsschlauch ,
        FR Enrouleurs automatiques utilisés pour  Schwenkkonsole und Wandbefestigung,  IT Avvolgitubo automatici adatti per distribuire
        distribuer des fluides tels que diesel, urée  Antientgleisungshalterung.  fluidi quali gasolio, urea (AdBlue), aria, olio e
        (AdBlue), air, huile et eau à différentes pressions                acqua a diverse pressioni e temperature con
        et températures avec flexibles jusqu’à 1” de  ES Enrolladores automáticos preparados para  tubi aventi diametro massimo 1”.
        diamètre. Bras guide-tuyau fixables en 3  distribuir fluidos como diesel, urea (AdBlue), aire  Bracci guidatubo orientabili in tre diverse
        positions différentes pour permettre l’installation  yaguacondiversascondicionesdepresióny  posizioni per consentire l’installazione desiderata
        souhaitée (pos. A-B-C). De série: tuyau de  temperatura con manguera de hasta 1” de  (pos. A-B-C). Di serie: tubo di collegamento e
        connexion et guide tuyau à 4 rouleaux pour  diámetro. Brazos guía manguera fijables en tres  guidatubo a 4 rulli per versioni indicate, carter
        versions indiquées, couvercles latéraux de  diversas posiciones para permitir la instalación  laterali di protezione (non disponibili per mod.
        protection (pas disponibles pour mod. Atex). En  deseada (pos. A-B-C). Estándar: manguera de  Atex). Optional: tubo di collegamento, supporto
        option: tuyau de connexion, support pivotant,  conexión y guía manguera de 4 rodillos para los  girevole, controstaffa di fissaggio, staffa
        contre-étrier de fixation, étrier anti-déraillement.  modelos indicados, tapas laterales de  antiscarrucolamento.
