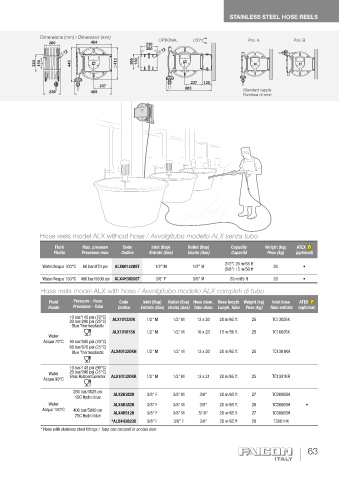

STAINLESS STEEL HOSE REELS

Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 50° Pos. A Pos. B
-

Standard supply
Fornitura di serie

Hose reels model ALX without hose / Avvolgitubo modello ALX senza tubo

Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Peso (kg) (optional)
(1/2”) 20 m/65 ft
Water/Acqua 100°C 60 bar/870 psi ALX601220ST 1/2” M 1/2” M 20 •
(5/8”) 15 m/50 ft
Water/Acqua 150°C 400 bar/5800 psi ALX4H3820ST 3/8” F 3/8” M 20 m/65 ft 20 •

Hose reels model ALX with hose / Avvolgitubo modello ALX completi di tubo

Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
10 bar/145 psi (70°C) ALX101320K 1/2” M 1/2” M 13 x 20 20 m/65 ft 25 TC13005K
20 bar/290 psi (25°C)
Blue Thermoplastic
ALX101615K 1/2” M 1/2” M 16 x 23 15 m/50 ft 25 TC16005K
Water
Acqua 70°C 40 bar/580 psi (70°C)
60 bar/870 psi (25°C)
Blue Thermoplastic ALX401320KH 1/2” M 1/2” M 13 x 20 20 m/65 ft 25 TC1301KH

10 bar/145 psi (90°C)
Water 20 bar/290 psi (25°C)
Acqua 90°C Blue Rubber/Gomma ALX101320KR 1/2” M 1/2” M 13 x 21 20 m/65 ft 25 TC1301KR

250 bar/3625 psi ALX2H3820 3/8” F 3/8” M 3/8” 20 m/65 ft 27 TC38005H
1SC Hydro blue
Water ALX4H3820 3/8” F 3/8” M 3/8” 20 m/65 ft 28 TC38005H •
Acqua 150°C 400 bar/5800 psi
2SC Hydro blue ALX4H5120 3/8” F 3/8” M 5/16” 20 m/65 ft 27 TC38005H
*ALX4H3820X 3/8” F 3/8” F 3/8” 20 m/65 ft 28 T3801HX
* Hose with stainless steel fittings / Tubo con raccordi in acciaio inox
