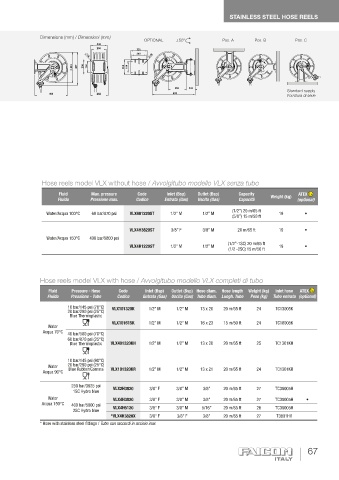

STAINLESS STEEL HOSE REELS

Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 50° Pos. A Pos. B Pos. C
-
230
200 230
200 12
12
413 447 200 150 205 150

250 120
Standard supply
460 242 605
Fornitura di serie

Hose reels model VLX without hose / Avvolgitubo modello VLX senza tubo

Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Weight (kg) (optional)

(1/2”) 20 m/65 ft
Water/Acqua 100°C 60 bar/870 psi VLX601220ST 1/2” M 1/2” M 19 •
(5/8”) 15 m/50 ft
VLX4H3820ST 3/8” F 3/8” M 20 m/65 ft 19 •
Water/Acqua 150°C 400 bar/5800 psi
(1/2”-1SC) 20 m/65 ft
VLX4H1220ST 1/2” M 1/2” M 19 •
(1/2 -2SC) 15 m/50 ft

Hose reels model VLX with hose / Avvolgitubo modello VLX completi di tubo
Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)

10 bar/145 psi (70°C) VLX101320K 1/2” M 1/2” M 13 x 20 20 m/65 ft 24 TC13005K
20 bar/290 psi (25°C)
Blue Thermoplastic
VLX101615K 1/2” M 1/2” M 16 x 23 15 m/50 ft 24 TC16005K
Water
Acqua 70°C 40 bar/580 psi (70°C)
60 bar/870 psi (25°C)
Blue Thermoplastic VLX401320KH 1/2” M 1/2” M 13 x 20 20 m/65 ft 25 TC1301KH

10 bar/145 psi (90°C)
Water 20 bar/290 psi (25°C) VLX101320KR
Acqua 90°C Blue Rubber/Gomma 1/2” M 1/2” M 13 x 21 20 m/65 ft 24 TC1301KR

250 bar/3625 psi VLX2H3820
1SC Hydro blue 3/8” F 3/8” M 3/8” 20 m/65 ft 27 TC38005H
Water VLX4H3820 3/8” F 3/8” M 3/8” 20 m/65 ft 27 TC38005H •
Acqua 150°C 400 bar/5800 psi
2SC Hydro blue VLX4H5120 3/8” F 3/8” M 5/16” 20 m/65 ft 26 TC38005H
*VLX4H3820X 3/8” F 3/8” F 3/8” 20 m/65 ft 27 T3801HX
* Hose with stainless steel fittings / Tubo con raccordi in acciaio inox
