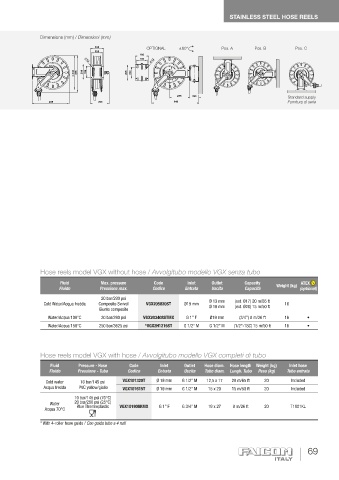

Page 69 - Faicom

STAINLESS STEEL HOSE REELS

Dimensions (mm) / Dimensioni (mm)
180 OPTIONAL + 60° Pos. A Pos. B Pos. C
-
150
180
150 12
12
442 475 200 150 205 150

275 120 Standard supply
495 250 640 Fornitura di serie

Hose reels model VGX without hose / Avvolgitubo modello VGX senza tubo
Fluid Max. pressure Code Inlet Outlet Capacity ATEX
Fluido Pressione max. Codice Entrata Uscita Capacità Weight (kg) (optional)
20 bar/290 psi
Cold Water/Acqua fredda Composite Swivel VGX205820ST Ø19 mm Ø 13 mm (ext. Ø17) 20 m/65 ft 16
(ext. Ø20) 15 m/50 ft
Ø 16 mm
Giunto composito
Water/Acqua 100°C 20 bar/290 psi VGX203408STMX G 1” F Ø19 mm (3/4”) 8 m/26 ft 16 •
Water/Acqua 150°C 250 bar/3625 psi *VGX2H1215ST G 1/2” M G 1/2” M (1/2”-1SC) 15 m/50 ft 16 •

Hose reels model VGX with hose / Avvolgitubo modello VGX completi di tubo

Fluid Pressure - Hose Code Inlet Outlet Hose diam. Hose length Weight (kg) Inlet hose
Fluido Pressione - Tubo Codice Entrata Uscita Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata
Cold water 10 bar/145 psi VGX101320T Ø 19 mm G 1/2” M 12,5 x 17 20 m/65 ft 20 Included
Acqua fredda PVC yellow/giallo VGX101615T Ø 19 mm G 1/2” M 15 x 20 15 m/50 ft 20 Included

10 bar/145 psi (70°C)
Water 20 bar/290 psi (25°C)
Acqua 70°C Blue Thermoplastic VGX101908KMX G 1” F G 3/4” M 19 x 27 8 m/26 ft 20 T1901KL

* With 4-roller hose guide / Con guida tubo a 4 rulli
