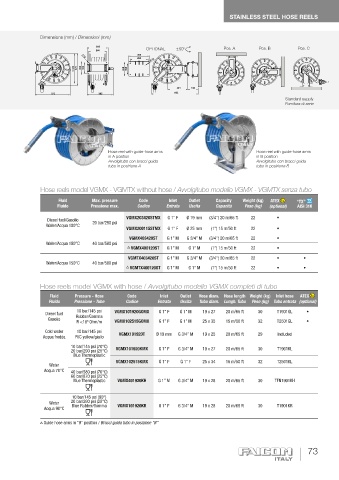

Page 73 - Faicom

STAINLESS STEEL HOSE REELS

Dimensions (mm) / Dimensioni (mm)
305 OPTIONAL + 50° Pos. A Pos. B Pos. C
260 -
305
12
260
12
442 470 193 160 205 160

291 152
512 385 682
Standard supply
Fornitura di serie

Hose reel with guide-hose arms Hose reel with guide-hose arms
in A position in B position
Avvolgitubo con bracci guida Avvolgitubo con bracci guida
tubo in posizione A tubo in posizione B

Hose reels model VGMX - VGMTX without hose / Avvolgitubo modello VGMX - VGMTX senza tubo
Fluid Max. pressure Code Inlet Outlet Capacity Weight (kg) ATEX “TX”
TX
AISI316
Fluido Pressione max. Codice Entrata Uscita Capacità Peso (kg) (optional) AISI 316
AISI 316 TX
TX AISI316
VGMX203420STMX G 1” F Ø 19 mm (3/4”) 20 m/65 ft 22 •
Diesel fuel/Gasolio
Water/Acqua 100°C 20 bar/290 psi
VGMX200115STMX G 1” F Ø 25 mm (1”) 15 m/50 ft 22 •
VGMX403420ST G 1” M G 3/4” M (3/4”) 20 m/65 ft 22 •
Water/Acqua 150°C 40 bar/580 psi
VGMX400120ST G 1” M G 1” M (1”) 15 m/50 ft 22 •
VGMTX403420ST G 1” M G 3/4” M (3/4”) 20 m/65 ft 22 • •
Water/Acqua 150°C 40 bar/580 psi
VGMTX400120ST G 1” M G 1” M (1”) 15 m/50 ft 22 • •

Hose reels model VGMX with hose / Avvolgitubo modello VGMX completi di tubo
Fluid Pressure - Hose Code Inlet Outlet Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata Uscita Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
10 bar/145 psi VGMX101920GOMX G 1” F G 1” M 19 x 27 20 m/65 ft 30 T1901GL •
Diesel fuel Rubber/Gomma
Gasolio
6
R <10 Ohm/m VGMX102515GOMX G 1” F G 1” M 25 x 35 15 m/50 ft 32 T2501GL •
Cold water 10 bar/145 psi
Acqua fredda PVC yellow/giallo VGMX101920T Ø 19 mm G 3/4” M 19 x 25 20 m/65 ft 29 Included
10 bar/145 psi (70°C)
20 bar/290 psi (25°C) VGMX101920KMX G 1” F G 3/4” M 19 x 27 20 m/65 ft 30 T1901KL
Blue Thermoplastic
VGMX102515KMX G 1” F G 1” F 25 x 34 15 m/50 ft 32 T2501KL
Water
Acqua 70°C 40 bar/580 psi (70°C)
60 bar/870 psi (25°C)
Blue Thermoplastic VGMX401920KH G 1” M G 3/4” M 19 x 28 20 m/65 ft 30 TFN1901KH

10 bar/145 psi (90°)
Water 20 bar/290 psi (25°C) VGMX101920KR
Acqua 90°C Blue Rubber/Gomma G 1” F G 3/4” M 19 x 28 20 m/65 ft 30 T1901KR

Guide hose arms in “B” position / Bracci guida tubo in posizione “B”
