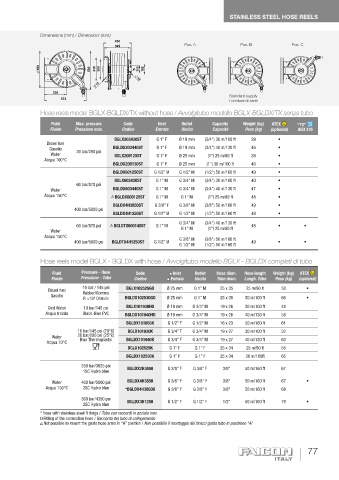

STAINLESS STEEL HOSE REELS

Dimensions (mm) / Dimensioni (mm)
430
395 Pos. A Pos. B Pos. C

550 580 348 300 110 152

12
13
338
Standard supply
633
Fornitura di serie
Hose reels model BGLX-BGLDX/TX without hose / Avvolgitubo modello BGLX-BGLDX/TX senza tubo
Fluid Max. pressure Code Inlet Outlet Capacity Weight (kg) ATEX “TX”
TX
AISI316
Fluido Pressione max. Codice Entrata Uscita Capacità Peso (kg) (optional) AISI 316
AISI 316
TX TX
AISI316
BGLX203430ST G 1” F Ø 19 mm (3/4”) 30 m/100 ft 39 •
Diesel fuel
Gasolio 20 bar/290 psi BGLDX203440ST G 1” F Ø 19 mm (3/4”) 40 m/130 ft 46 •
Water BGLX200125ST G 1” F Ø 25 mm (1”) 25 m/80 ft 39 •
Acqua 100°C
BGLDX200130ST G 1” F Ø 25 mm (1”) 30 m/100 ft 46 •
BGLDX601250ST G 1/2” M G 1/2” M (1/2”) 50 m/160 ft 49 •
BGLX603430ST G 1” M G 3/4” M (3/4”) 30 m/100 ft 40 •
60 bar/870 psi
Water BGLDX603440ST G 1” M G 3/4” M (3/4”) 40 m/130 ft 47 •
Acqua 150°C BGLDX600125ST G 1” M G 1” M (1”) 25 m/80 ft 48 •
BGLDX4H3850ST G 3/8” F G 3/8” M (3/8”) 50 m/160 ft 49 •
400 bar/5800 psi
BGLDX4H1250ST G 1/2” M G 1/2” M (1/2”) 50 m/160 ft 49 •
G 3/4” M (3/4”) 40 m/130 ft
60 bar/870 psi BGLDTX600140ST G 1” M 48 • •
Water G 1” M (1”) 25 m/80 ft
Acqua 150°C
400 bar/5800 psi BGLDTX4H1250ST G 1/2” M G 3/8” M (3/8”) 50 m/160 ft 49 • •
G 1/2” M (1/2”) 50 m/160 ft

Hose reels model BGLX - BGLDX with hose / Avvolgitubo modello BGLX - BGLDX completi di tubo

Fluid Pressure - Hose Code Inlet Outlet Hose diam. Hose length Weight (kg) ATEX
Fluido Pressione - Tubo Codice Entrata Uscita Tubo diam. Lungh. Tubo Peso (kg) (optional)
10 bar / 145 psi BGLX102525GO Ø 25 mm G 1” M 25 x 35 25 m/80 ft 50 •
Diesel fuel Rubber/Gomma
Gasolio
R <10 Ohm/m BGLDX102530GO Ø 25 mm G 1” M 25 x 35 30 m/100 ft 66 •
6
Cold Water 10 bar/145 psi BGLX101930HO Ø 19 mm G 3/4” M 19 x 26 30 m/100 ft 48
Acqua fredda Black-Blue PVC BGLDX101940HO Ø 19 mm G 3/4” M 19 x 26 40 m/130 ft 58
BGLDX101650K G 1/2” F G 1/2” M 16 x 23 50 m/160 ft 61
10 bar/145 psi (70°C) BGLX101930K G 3/4” F G 3/4” M 19 x 27 30 m/100 ft 52
Water 20 bar/290 psi (25°C) BGLDX101940K
Acqua 70°C Blue Thermoplastic G 3/4” F G 3/4” M 19 x 27 40 m/130 ft 63
BGLX102525K G 1” F G 1” F 25 x 34 25 m/80 ft 55
BGLDX102530K G 1” F G 1” F 25 x 34 30 m/100ft 65

250 bar/3625 psi BGLDX2H3850 G 3/8” F G 3/8” F 3/8” 50 m/160 ft 67
1SC Hydro blue
Water 400 bar/5800 psi BGLDX4H3850 G 3/8” F G 3/8” F 3/8” 50 m/160 ft 67 •
Acqua 150°C 2SC Hydro blue *BGLDX4H3850X G 3/8” F G 3/8” F 3/8” 50 m/160 ft 68

300 bar/4350 psi BGLDX3H1250 G 1/2” F G 1/2” F 1/2” 50 m/160 ft 79 •
2SC Hydro blue
* Hose with stainless steel fi ttings / Tubo con raccordi in acciaio inox
Fitting of the connection hose / Raccordo del tubo di collegamento
Not possible to mount the guide hose arms in “A” position / Non possibile il montaggio dei bracci guida tubo in posizione “A”
