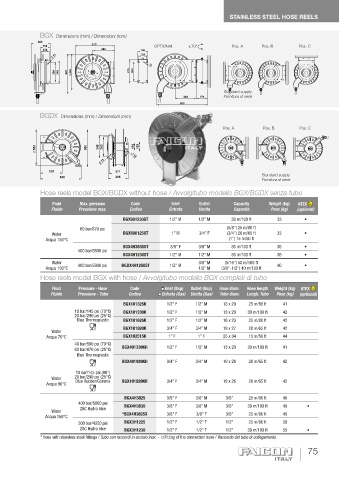

STAINLESS STEEL HOSE REELS

BGX Dimensions (mm) / Dimensioni (mm)
300
154 615 OPTIONAL + 70° Pos. A Pos. B Pos. C
-
124 340 160
13 124
13
300 348 607 550 370 300

Standard supply
338 176 Fornitura di serie
800
BGDX Dimensions (mm) / Dimensioni (mm)

Pos. A Pos. B Pos. C

550 580 348 300 110 152
12
13
338 271
630 306 Standard supply
Fornitura di serie
Hose reels model BGX/BGDX without hose / Avvolgitubo modello BGX/BGDX senza tubo

Fluid Max. pressure Code Inlet Outlet Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata Uscita Capacità Peso (kg) (optional)

BGX601230ST 1/2” M 1/2” M 30 m/100 ft 33 •
60 bar/870 psi (5/8”) 25 m/80 ft
Water BGX600125ST 1” M 3/4” F (3/4”) 20 m/65 ft 33 •
Acqua 150°C (1”) 15 m/50 ft
BGX4H3830ST 3/8” F 3/8” M 30 m/100 ft 36 •
400 bar/5800 psi
BGX4H1230ST 1/2” M 1/2” M 30 m/100 ft 36 •
Water BGDX4H1250ST 3/8” M (5/16”) 50 m/160 ft
Acqua 150°C 400 bar/5800 psi 1/2” M 1/2” M (3/8”-1/2”) 40 m/130 ft 40 •
Hose reels model BGX with hose / Avvolgitubo modello BGX completi di tubo

Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) (optional)
BGX101325K 1/2” F 1/2” M 13 x 20 25 m/80 ft 41
10 bar/145 psi (70°C) BGX101330K 1/2” F 1/2” M 13 x 20 30 m/100 ft 42
20 bar/290 psi (25°C)
Blue Thermoplastic BGX101625K 1/2” F 1/2” M 16 x 23 25 m/80 ft 42
BGX101920K 3/4” F 3/4” M 19 x 27 20 m/65 ft 42
Water
Acqua 70°C BGX102515K 1” F 1” F 25 x 34 15 m/50 ft 44
40 bar/580 psi (70°C)
60 bar/870 psi (25°C) BGX401330KH 1/2” F 1/2” M 13 x 20 30 m/100 ft 41
Blue Thermoplastic
BGX401920KH 3/4” F 3/4” M 19 x 28 20 m/65 ft 42
10 bar/145 psi (90°)
Water 20 bar/290 psi (25°C) BGX101920KR
Acqua 90°C Blue Rubber/Gomma 3/4” F 3/4” M 19 x 28 20 m/65 ft 42

BGX4H3825 3/8” F 3/8” M 3/8” 25 m/80 ft 45
400 bar/5800 psi BGX4H3830 3/8” F 3/8” M 3/8” 30 m/100 ft 48 •
2SC Hydro blue
Water
Acqua 150°C *BGX4H3825X 3/8” F 3/8” F 3/8” 25 m/80 ft 45
300 bar/4350 psi BGX3H1225 1/2” F 1/2” F 1/2” 25 m/80 ft 50
2SC Hydro blue BGX3H1230 1/2” F 1/2” F 1/2” 30 m/100 ft 55 •
* Hose with stainless steel fittings / Tubo con raccordi in acciaio inox - Fitting of the connection hose / Raccordo del tubo di collegamento
