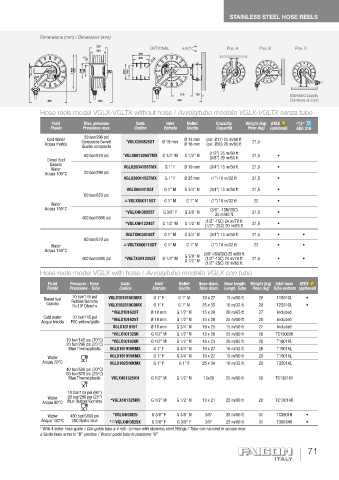

STAINLESS STEEL HOSE REELS

Dimensions (mm) / Dimensioni (mm)
230 OPTIONAL + 50° Pos. A Pos. B Pos. C
200 -
230
200
12 12
442 475 200 150 205 150

275 120 Standard supply
495 300 640 Fornitura di serie
Hose reels model VGLX-VGLTX without hose / Avvolgitubo modello VGLX-VGLTX senza tubo
Fluid Max. pressure Code Inlet Outlet Capacity Weight (kg) ATEX “TX”
TX
AISI316
Fluido Pressione max. Codice Entrata Uscita Capacità Peso (kg) (optional) AISI 316
TX
AISI 316 TX
20 bar/290 psi AISI316
Cold Water *VGLX205825ST Ø 13 mm (ext. Ø17) 25 m/80 ft
Acqua fredda Composite Swivel Ø 19 mm Ø 16 mm (ext. Ø20) 20 m/65 ft 21,5
Giunto composito
(1/2”) 25 m/80 ft
60 bar/870 psi *VGLX601225STMX G 1/2” M G 1/2” M 21,5 •
Diesel fuel (5/8”) 20 m/65 ft
Gasolio VGLX203415STMX G 1” F Ø 19 mm (3/4”) 15 m/50 ft 21,5 •
Water
Acqua 100°C 20 bar/290 psi
VGLX200115STMX G 1” F Ø 25 mm (1”) 10 m/32 ft 21,5 •
VGLX603415ST G 1” M G 3/4” M (3/4”) 15 m/50 ft 21,5 •
60 bar/870 psi
VGLX600115ST G 1” M G 1” M (1”) 10 m/32 ft 22 •
Water
Acqua 150°C (3/8”- 1SN/2SC)
*VGLX4H3825ST G 3/8” F G 3/8” M 25 m/80 ft 21,5 •
400 bar/5800 psi
*VGLX4H1224ST G 1/2” M G 1/2” M (1/2”-1SC) 24 m/78 ft 21,5 •
(1/2”- 2SC) 20 m/65 ft
VGLTX603415ST G 1” M G 3/4” M (3/4”) 15 m/50 ft 21,5 • •
60 bar/870 psi
Water VGLTX600115ST G 1” M G 1” M (1”) 10 m/32 ft 22 • •
Acqua 150°C (3/8”-1SN/2SC)25m/80ft
400 bar/5800 psi *VGLTX4H1225ST G 1/2” M G 3/8” M (1/2”-1SC) 24 m/78 ft 21,5 • •
G 1/2” M
(1/2”-2SC) 20 m/65 ft
Hose reels model VGLX with hose / Avvolgitubo modello VGLX con tubo

Fluid Pressure - Hose Code Inlet Outlet Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata Uscita Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
10 bar/145 psi VGLX101915GOMX G 1” F G 1” M 19 x 27 15 m/50 ft 28 T1901GL •
Diesel fuel Rubber/Gomma
Gasolio 6 VGLX102510GOMX G 1” F G 1” M 25 x 35 10 m/32 ft 28 T2501GL •
R<10 Ohm/m
*VGLX101620T Ø 19 mm G 1/2” M 15 x 20 20 m/65 ft 27 Included
Cold water 10 bar/145 psi *VGLX101625T
Acqua fredda PVC yellow/giallo Ø 19 mm G 1/2” M 15 x 20 25 m/80 ft 28 Included
VGLX101915T Ø 19 mm G 3/4” M 19 x 25 15 m/50 ft 27 Included
*VGLX101325K G 1/2” M G 1/2” M 13 x 20 25 m/80 ft 28 TC13005K
10 bar/145 psi (70°C) *VGLX101620K G 1/2” M G 1/2” M 16 x 23 20 m/65 ft 28 T1601KL
20 bar/290 psi (25°C)
Blue Thermoplastic VGLX101910KMX G 1” F G 3/4” M 19 x 27 10 m/32 ft 26 T1901KL
Water VGLX101915KMX G 1” F G 3/4” M 19 x 27 15 m/50 ft 28 T1901KL
Acqua 70°C VGLX102510KMX G 1” F G 1” F 25 x 34 10 m/32 ft 28 T2501KL
40 bar/580 psi (70°C)
60 bar/870 psi (25°C)
Blue Thermoplastic VGLX401325KH G 1/2” M G 1/2” M 13x20 25 m/80 ft 28 TC1301KH

10 bar/145 psi (90°)
Water 20 bar/290 psi (25°)
Acqua 90°C Blue Rubber/Gomma *VGLX101325KR G 1/2” M G 1/2” M 13 x 21 25 m/80 ft 28 TC1301KR

Water 400 bar/5800 psi *VGLX4H3825 G 3/8” F G 3/8” M 3/8” 25 m/80 ft 31 TC3801H •
Acqua 150°C 2SC Hydro blue * VGLX4H3825X G 3/8” F G 3/8” F 3/8” 25 m/80 ft 31 T3801HX •
* With 4-roller hose guide / Con guida tubo a 4 rulli - Hose with stainless steel fittings / Tubo con raccordi in acciaio inox
Guide hose arms in “B” position / Bracci guida tubo in posizione “B”
