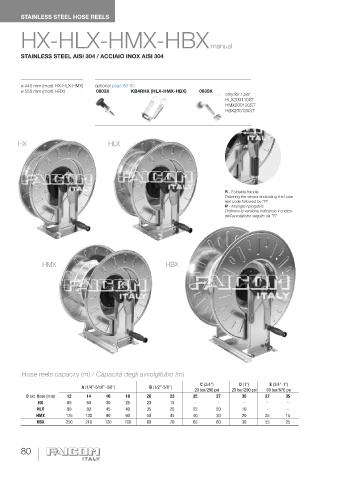

STAINLESS STEEL HOSE REELS

HX-HLX-HMX-HBX manual

STAINLESS STEEL AISI 304 / ACCIAIO INOX AISI 304

ø 445 mm (mod. HX-HLX-HMX) optional page 88-93
ø 550 mm (mod. HBX) 0803X KB4RHX (HLX-HMX-HBX) 0835K
only for / per
HLX200110ST
HMX200120ST
HBX200130ST

HX HLX

R - Foldable handle
Ordering the version indicating the hose
reel code followed by “R”
R - Maniglia ripiegabile
Ordinare la versione indicando il codice
dell’avvolgitubo seguito da “R”

HMX HBX

Hose reels capacity (m) / Capacità degli avvolgitubo (m)

C (3/4”) D (1”) E (3/4”-1”)
A (1/4”-5/16”-3/8”) B (1/2”-5/8”)
20 bar/290 psi 20 bar/290 psi 60 bar/870 psi
Ø ext. Hose (mm) 12 14 16 18 20 23 25 27 35 27 35
HX 60 50 30 25 20 15 - - - - -
HLX 90 80 45 40 35 25 22 20 10 - -
HMX 175 130 90 60 50 45 40 30 20 25 15
HBX 250 210 120 100 90 70 65 60 30 55 25

80
