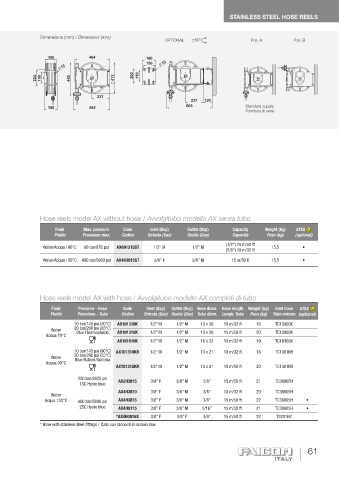

STAINLESS STEEL HOSE REELS

Dimensions (mm) / Dimensioni (mm)
OPTIONAL + 60° Pos. A Pos. B
-

Standard supply
Fornitura di serie

Hose reels model AX without hose / Avvolgitubo modello AX senza tubo

Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Peso (kg) (optional)
(1/2”) 15 m/50 ft
Water/Acqua 100°C 60 bar/870 psi AX601215ST 1/2” M 1/2” M 15,5 •
(5/8”) 10 m/32 ft
Water/Acqua 150°C 400 bar/5800 psi AX4H3815ST 3/8” F 3/8” M 15 m/50 ft 15,5 •

Hose reels model AX with hose / Avvolgitubo modello AX completi di tubo

Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
10 bar/145 psi (70°C) AX101310K 1/2” M 1/2” M 13 x 20 10 m/32 ft 18 TC13005K
Water 20 bar/290 psi (25°C) AX101315K 1/2” M 1/2” M 13 x 20 15 m/50 ft 20 TC13005K
Blue Thermoplastic
Acqua 70°C
AX101610K 1/2” M 1/2” M 16 x 23 10 m/32 ft 19 TC16005K
10 bar/145 psi (90°C) AX101310KR 1/2” M 1/2” M 13 x 21 10 m/32 ft 18 TC1301KR
Water 20 bar/290 psi (25°C)
Blue Rubber/Gomma
Acqua 90°C
AX101315KR 1/2” M 1/2” M 13 x 21 15 m/50 ft 20 TC1301KR
250 bar/3625 psi AX2H3815
1SC Hydro blue 3/8” F 3/8” M 3/8” 15 m/50 ft 21 TC38005H
AX4H3810 3/8” F 3/8” M 3/8” 10 m/32 ft 20 TC38005H
Water
Acqua 150°C 400 bar/5800 psi AX4H3815 3/8” F 3/8” M 3/8” 15 m/50 ft 22 TC38005H •
2SC Hydro blue AX4H5115 3/8” F 3/8” M 5/16” 15 m/50 ft 21 TC38005H •
*AX4H3815X 3/8” F 3/8” F 3/8” 15 m/50 ft 22 T3801HX
* Hose with stainless steel fittings / Tubo con raccordi in acciaio inox
