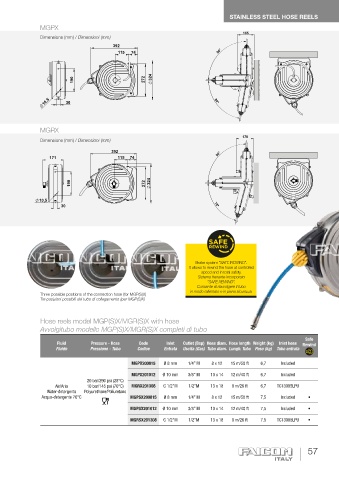

STAINLESS STEEL HOSE REELS
MGPX
165
Dimensions (mm) / Dimensioni (mm)
392
115 74 90°

190 272 324

10.5 30 80°

MGRX
178
Dimensions (mm) / Dimensioni (mm)
392 90°
171 115 74

190 272 324

10,5
30 75°

Brake system “SAFE REWIND”.
It allows to rewind the hose at controlled
speed and in total safety.
Sistema frenante incorporato
“SAFE REWIND”.
Consente di riavvolgere il tubo
in modo rallentato e in piena sicurezza.
Three possible positions of the connection hose (for MGP(S)X)
Tre posizioni possibili del tubo di collegamento (per MGP(S)X)

Hose reels model MGP(S)X/MGR(S)X with hose
Avvolgitubo modello MGP(S)X/MGR(S)X completi di tubo

Safe
Fluid Pressure - Hose Code Inlet Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose Rewind
Fluido Pressione - Tubo Codice Entrata Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata

MGPX200815 Ø 8 mm 1/4” M 8 x 12 15 m/50 ft 6,7 Included

MGPX201012 Ø 10 mm 3/8” M 10 x 14 12 m/40 ft 6,7 Included
20 bar/290 psi (25°C)
Air/Aria 10 bar/145 psi (70°C) MGRX201308 G 1/2”M 1/2”M 13 x 18 8 m/26 ft 6,7 TC13005LPU
Water-detergents Polyurethane/Poliuretano
Acqua-detergente 70°C MGPSX200815 Ø 8 mm 1/4” M 8 x 12 15 m/50 ft 7,5 Included •

MGPSX201012 Ø 10 mm 3/8” M 10 x 14 12 m/40 ft 7,5 Included •
MGRSX201308 G 1/2”M 1/2”M 13 x 18 8 m/26 ft 7,5 TC13005LPU •

57
