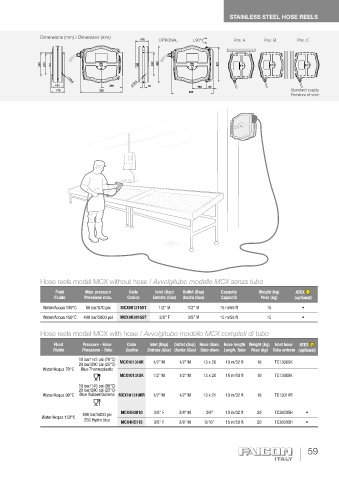

STAINLESS STEEL HOSE REELS

Dimensions (mm) / Dimensioni (mm)
170 OPTIONAL + 90° Pos. A Pos. B Pos. C
-

295 270 292 462 427

10.5
10.5
150 260 30 180 80
175 520 Standard supply
520
Fornitura di serie

Hose reels model MCX without hose / Avvolgitubo modello MCX senza tubo
Fluid Max. pressure Code Inlet (Bsp) Outlet (Bsp) Capacity Weight (kg) ATEX
Fluido Pressione max. Codice Entrata (Gas) Uscita (Gas) Capacità Peso (kg) (optional)
Water/Acqua 100°C 60 bar/870 psi MCX601215ST 1/2” M 1/2” M 15 m/50 ft 15 •
Water/Acqua 150°C 400 bar/5800 psi MCX4H3815ST 3/8” F 3/8” M 15 m/50 ft 15 •

Hose reels model MCX with hose / Avvolgitubo modello MCX completi di tubo

Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg) Inlet hose ATEX
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg) Tubo entrata (optional)
10 bar/145 psi (70°C) MCX101310K 1/2” M 1/2” M 13 x 20 10 m/32 ft 18 TC13005K
20 bar/290 psi (25°C)
Water/Acqua 70°C Blue Thermoplastic
MCX101315K 1/2” M 1/2” M 13 x 20 15 m/50 ft 19 TC13005K
10 bar/145 psi (90°C)
20 bar/290 psi (25°C)
Water/Acqua 90°C Blue Rubber/Gomma MCX101310KR 1/2” M 1/2” M 13 x 21 10 m/32 ft 18 TC1301KR

400 bar/5800 psi MCX4H3810 3/8” F 3/8” M 3/8” 10 m/32 ft 20 TC38005H •
Water/Acqua 150°C
2SC Hydro blue MCX4H5115 3/8” F 3/8” M 5/16” 15 m/50 ft 20 TC38005H •
