P. 55

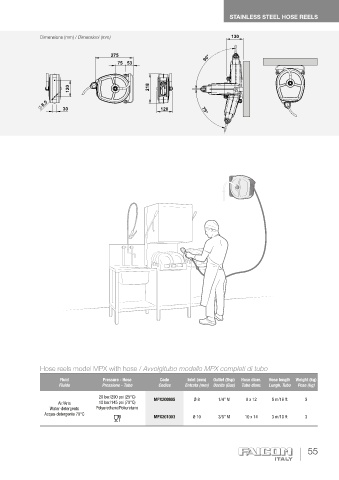

STAINLESS STEEL HOSE REELS
Dimensions (mm) / Dimensioni (mm) 130
275 90°
75 53
120 218
8.5
30 120 75°
Hose reels model MPX with hose / Avvolgitubo modello MPX completi di tubo
Fluid Pressure - Hose Code Inlet (mm) Outlet (Bsp) Hose diam. Hose length Weight (kg)
Fluido Pressione - Tubo Codice Entrata (mm) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg)
20 bar/290 psi (25°C) MPX200805 Ø8 1/4” M 8 x 12 5 m/16 ft 3
Air/Aria 10 bar/145 psi (70°C)
Water-detergents Polyurethane/Poliuretano
Acqua-detergente 70°C
MPX201003 Ø 10 3/8” M 10 x 14 3 m/10 ft 3
55
