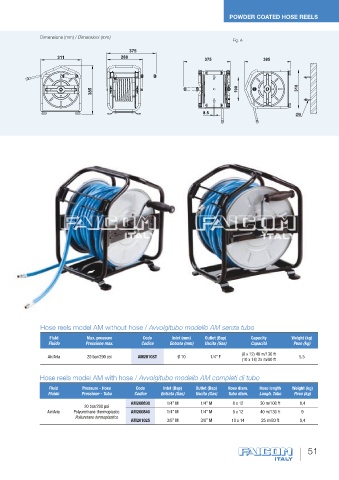

POWDER COATED HOSE REELS
Dimensions (mm) / Dimensioni (mm)
Fig. A
375 A
311 280
375 385
385 190 310
8.5 Ø8 A
Hose reels model AM without hose / Avvolgitubo modello AM senza tubo
Fluid Max. pressure Code Inlet (mm) Outlet (Bsp) Capacity Weight (kg)
Fluido Pressione max. Codice Entrata (mm) Uscita (Gas) Capacità Peso (kg)
(8 x 12) 40 m/130 ft
Air/Aria 20 bar/290 psi AM2010ST Ø 10 1/4” F 5,5
(10 x 14) 25 m/80 ft
Hose reels model AM with hose / Avvolgitubo modello AM completi di tubo
Fluid Pressure - Hose Code Inlet (Bsp) Outlet (Bsp) Hose diam. Hose length Weight (kg)
Fluido Pressione - Tubo Codice Entrata (Gas) Uscita (Gas) Tubo diam. Lungh. Tubo Peso (kg)
AM200830 1/4” M 1/4” M 8 x 12 30 m/100 ft 8,4
20 bar/290 psi
Air/Aria Polyurethane thermoplastic AM200840 1/4” M 1/4” M 8 x 12 40 m/130 ft 9
Poliuretano termoplastico
AM201025 3/8” M 3/8” M 10 x 14 25 m/80 ft 8,4
