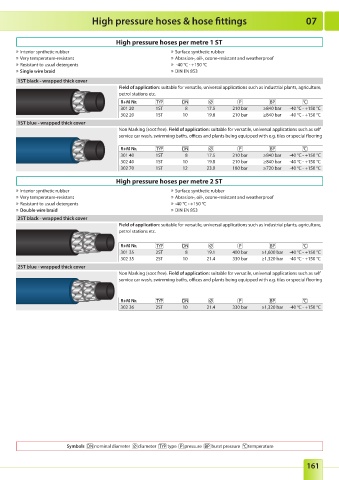

High pressure hoses & hose fittings 07

High pressure hoses per metre 1 ST
» Interior synthetic rubber » Surface synthetic rubber
» Very temperature-resistant » Abrasion-, oil-, ozone-resistant and weatherproof
» Resistant to usual detergents » -40 °C - +150 °C
» Single wire braid » DIN EN 853
1ST black - wrapped thick cover
Field of application: suitable for versatile, universal applications such as industrial plants, agriculture,
petrol stations etc.
R+M Nr.
301 20 1ST 8 17.5 210 bar ≥840 bar -40 °C - +150 °C
302 20 1ST 10 19.8 210 bar ≥840 bar -40 °C - +150 °C
1ST blue - wrapped thick cover
Non Marking (soot free). Field of application: suitable for versatile, universal applications such as self
service car wash, swimming baths, offices and plants being equipped with e.g. tiles or special flooring

R+M Nr.
301 40 1ST 8 17.5 210 bar ≥840 bar -40 °C - +150 °C
302 40 1ST 10 19.8 210 bar ≥840 bar -40 °C - +150 °C
302 70 1ST 12 23.0 180 bar ≥720 bar -40 °C - +150 °C

High pressure hoses per metre 2 ST
» Interior synthetic rubber » Surface synthetic rubber
» Very temperature-resistant » Abrasion-, oil-, ozone-resistant and weatherproof
» Resistant to usual detergents » -40 °C - +150 °C
» Double wire braid » DIN EN 853
2ST black - wrapped thick cover
Field of application: suitable for versatile, universal applications such as industrial plants, agriculture,
petrol stations etc.

R+M Nr.
301 35 2ST 8 19.1 400 bar ≥1,600 bar -40 °C - +150 °C
302 35 2ST 10 21.4 330 bar ≥1,320 bar -40 °C - +150 °C
2ST blue - wrapped thick cover
Non Marking (soot free). Field of application: suitable for versatile, universal applications such as self
service car wash, swimming baths, offices and plants being equipped with e.g. tiles or special flooring

R+M Nr.
302 36 2ST 10 21.4 330 bar ≥1,320 bar -40 °C - +150 °C

Symbols nominal diameter diameter type pressure burst pressure temperature
